Product Number: 28081A

TC VN/PVC, 3 C #14 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

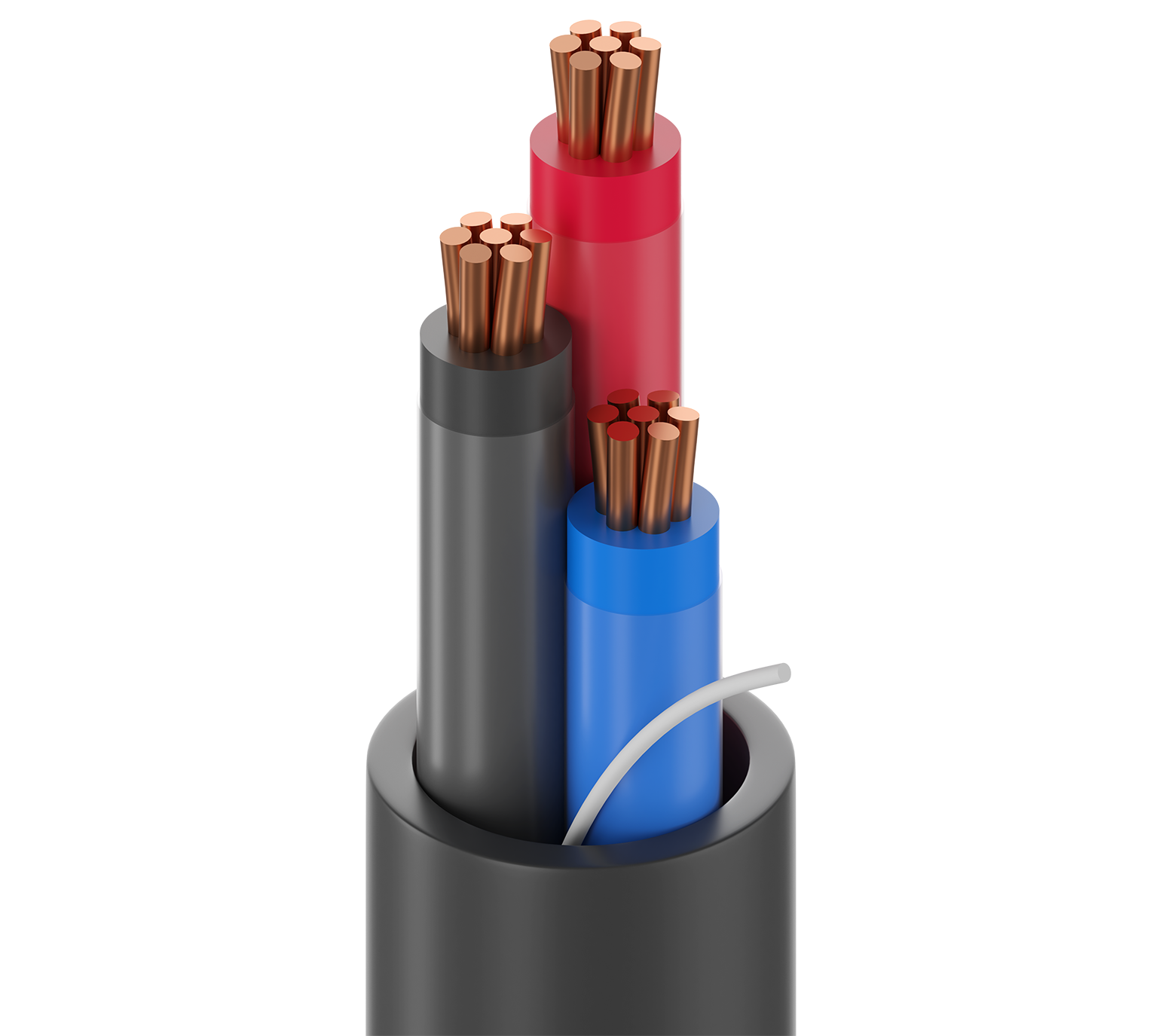

UL Type TC (1277) PVC-Nylon/PVC, 3 Conductor 14AWG (7x22) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

28081A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Footnote	Order
28081A 01010000	Black	Reel	612825135012	C Z	Order online
28081A 0105000	Black	Reel	612825135029	C Z	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.615 Revision Date: 04-06-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Construction Details

Overall Cable Diameter (Nominal)	0.346 in (8.79 mm)

Conductor

Element	Conductor(s)
No. of Elements	3
Size	14 AWG
Stranding	7x22
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.024 in (0.61 mm)
Nom. Insulation Diameter	0.116 in (2.95 mm)
Color Code	Black, Red, Blue

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.335 in (8.51 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Nom. Conductor DCR	2.67 Ohm/1000ft
Max. Current	24 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	164 lbs (74.4 kg)
Bulk Cable Weight	74 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	1.384 in (35.15 mm)
Installation Min.	1.73 in (43.9 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, NPLF, TC-ER, THWN-2
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.615 Revision Date: 04-06-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
