Product Number: 27337AS

TC VN/PVC, 2 C #16 Str BC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC 150V NPLF 90C Wet/Dry SUN RES DIR BUR

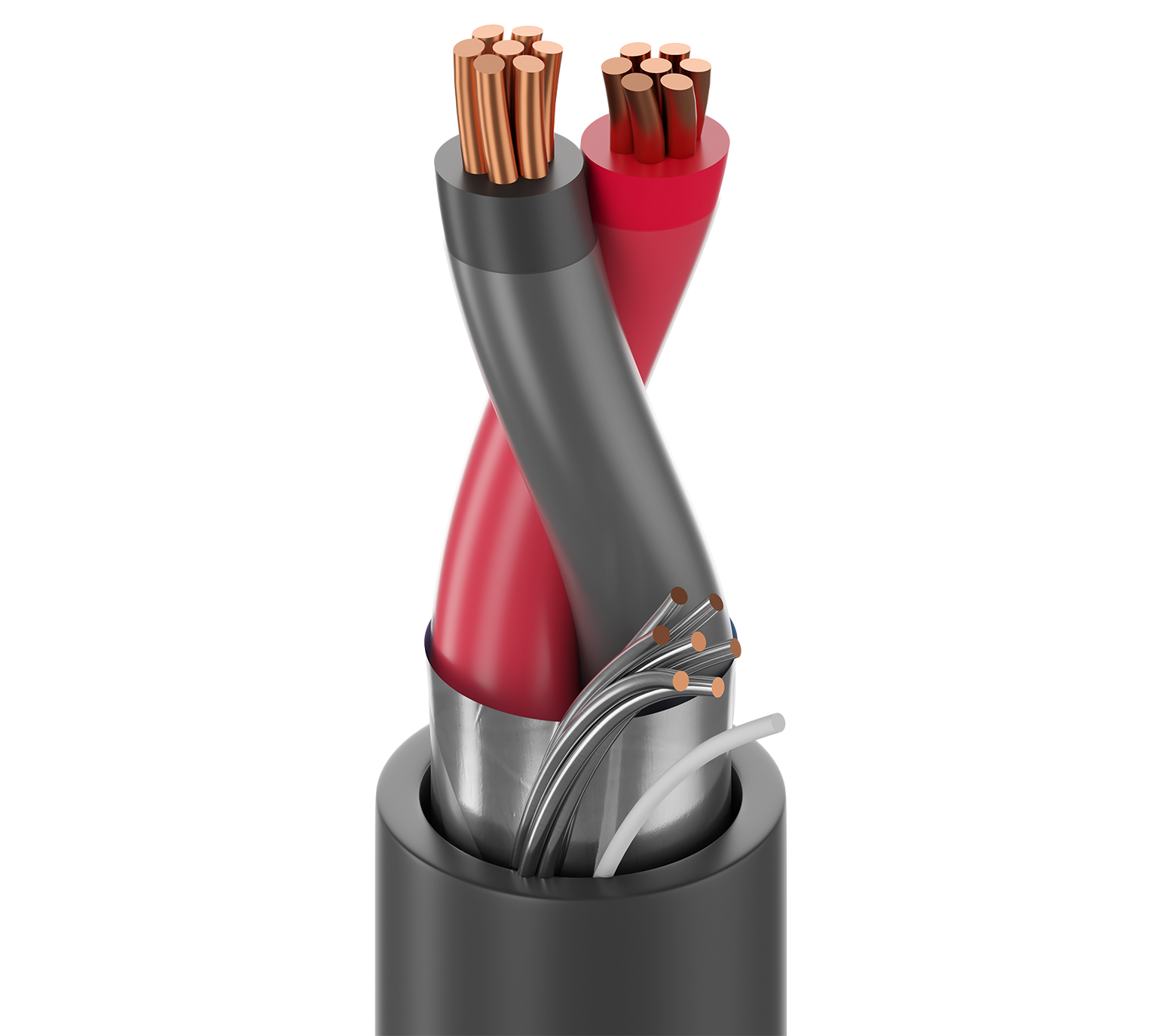

UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 16AWG (7x24) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC 150V NPLF 90C Wet/Dry SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

27337AS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
27337AS 0105000	Black	Reel	5,000 ft	612825133940	C Z	Order online
27337AS01010000	Black	Reel	10,000 ft	612825133957	C Z	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.636 Revision Date: 04-06-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Construction Details

Overall Cable Diameter (Nominal)	0.302 in (7.67 mm)

Conductor

Element	Conductor(s)
No. of Elements	2
Size	16 AWG
Stranding	7x24
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.101 in (2.57 mm)
Color Code	Black, Red

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	18 AWG (7x26) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.302 in (7.67 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	4.83 Ohm/1000ft (15.8 Ohm/km)

Electricals

Nom. Conductor DCR	4.2 Ohm/1000ft
Max. Current	18 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	90 lbs (41 kg)
Bulk Cable Weight	53 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	3.624 in (92.05 mm)
Installation Min.	3.624 in (92.05 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 336, Article 400, Article 760, NPLF, TC, TFFN
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
