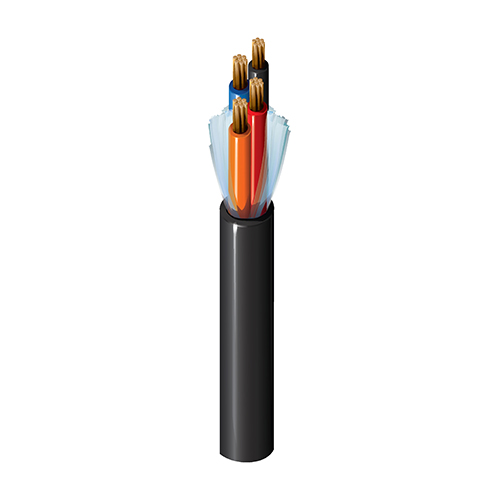

Product Number: 27140A

TC VN/PVC, 4 C #10 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 4 Conductor 10AWG (7x18) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

27140A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
27140A 0105000	Reel	612825133216	Order online
27140A 0105000	Reel	612825133216	Order online
27140A 01010000	Reel	612825133209	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.603 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP.

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Construction Details

Overall Cable Diameter (Nominal)	0.489 in

Conductor

Element	Conductor(s)
No. of Elements	4
Size	10 AWG
Stranding	7x18
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.024 in (0.61 mm)
Nom. Insulation Diameter	0.164 in (4.17 mm)
Color Code	ICEA Chart E2

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.489 in
Ripcord	Yes

Electrical Characteristics

Electricals

Nom. Conductor DCR	1.06 Ohm/1000ft
Max. Current	32 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	542 lbs (246 kg)
Bulk Cable Weight	197 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 75°C Wet
Operating	Wet/Dry: -30°C To 90°C

Bend Radius

Stationary Min.	1.956 in (49.68 mm)
Installation Min.	2.445 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL Loading, IEEE 1202 FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 336, TC, THHN, THWN
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
