TC VN/PVC, 2 C #12 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC 150V NPLF 90C Wet/Dry SUN RES DIR BUR

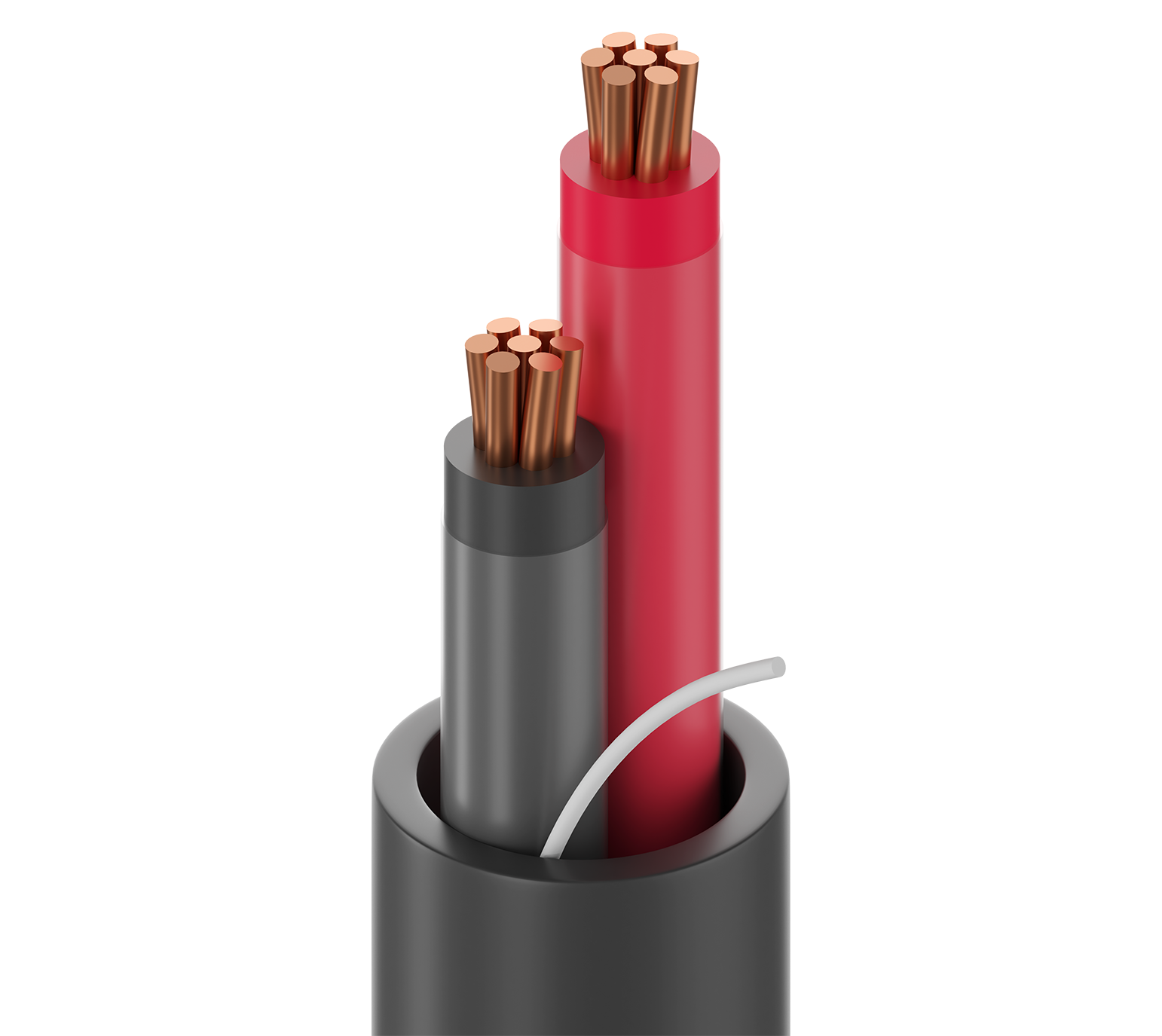

UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 12AWG (7x20) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 150V NPLF 90C Wet/Dry 90C SUN RES DIR BUR
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
27109A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Putup Type | Order |
|---|---|---|
| 27109A 01025000 | Reel | Order online |
| 27109A 0101000 | Reel | Order online |
| 27109A 0105000 | Reel | Order online |
| 27109A 01010000 | Reel | Order online |
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.609 Revision Date: 02-20-2026 |
| Footnote | C - CRATE REEL PUT-UP. |
Product Overview
| Suitable Applications | Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.234 x 0.372 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 12 AWG |
| Stranding | 7x20 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Nom. Thickness | 0.021 in (0.53 mm) |
| Nom. Insulation Diameter | 0.134 in (3.40 mm) |
| Color Code | Black, Red |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.048 in (1.2 mm) |
| Nom. Diameter | 0.234 x 0.372 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 1.68 Ohm/1000ft |
|---|---|
| Max. Current | 30 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 600 V (TC), 150 V (NPLF) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 174 lbs (78.9 kg) |
|---|---|
| Bulk Cable Weight | 74 lbs/1000ft |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | Wet/Dry: -30°C to 90°C |
Bend Radius
| Stationary Min. | 1.488 in (37.80 mm) |
|---|---|
| Installation Min. | 1.86 in (47.2 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 336, NPLF, TC, THWN-2 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Flat construction |
|---|
History
| Update and Revision | Revision Number: 0.609 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
