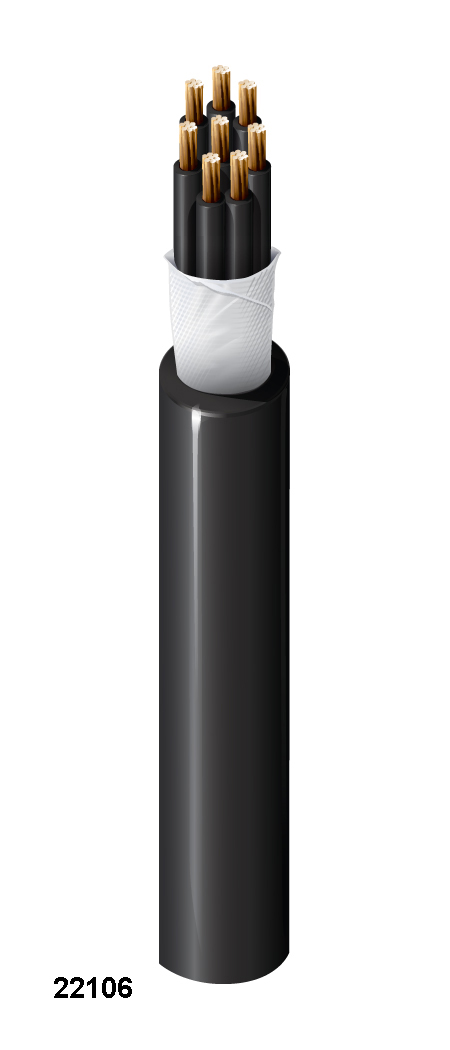

600V Type TC/CIC, (37) 14 AWG (7x22) BC+Grd, XLPE/PVC
Thirty-seven 14 AWG stranded (7x22) bare copper conductors plus ground wire, cross-linked polyethylene insulation, PVC jacket.
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | CEC Power and Control Applications |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 37 | 14 | 7x22 | BC - Bare Copper |
| Ground Wire | 1 | 14 AWG | 7x22 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLP, XLPO, XLPE (Thermoset) | 0.032 in (0.81 mm) | 0.135 in (3.43 mm) | Black and Numbered |
| Ground Wire | XLP, XLPO, XLPE (Thermoset) | 0.132 in (3.35 mm) | Green |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.095 in (2.4 mm) |
| Nom. Diameter | 1.155 in (29.34 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 2.64 Ohm/1000ft (8.66 Ohm/km) | 17.5 Amps per Conductor at 30oC |
| Ground Wire |
Voltage
| Voltage Rating | 600 V (CSA TC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 2020 lbs (916 kg) |
|---|---|
| Bulk Cable Weight | 905 lbs/1000ft (1350 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | Wet/Dry: -40°C to 90°C |
| Installation | -25°C To +90 |
Bend Radius
| Installation Min. | 6.68 in (170 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial |
|---|---|
| AWM Compliance | C22.2#230 Type TC, C22.2#239 Type CIC |
| CEC / C(UL) Compliance | TC, CIC. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.139 Revision Date: 05-14-2026 |
|---|
