Product Number: 1120A

Inst, 1 Pr #18 Str BC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC 150V NPLF 90C Dry/Wet

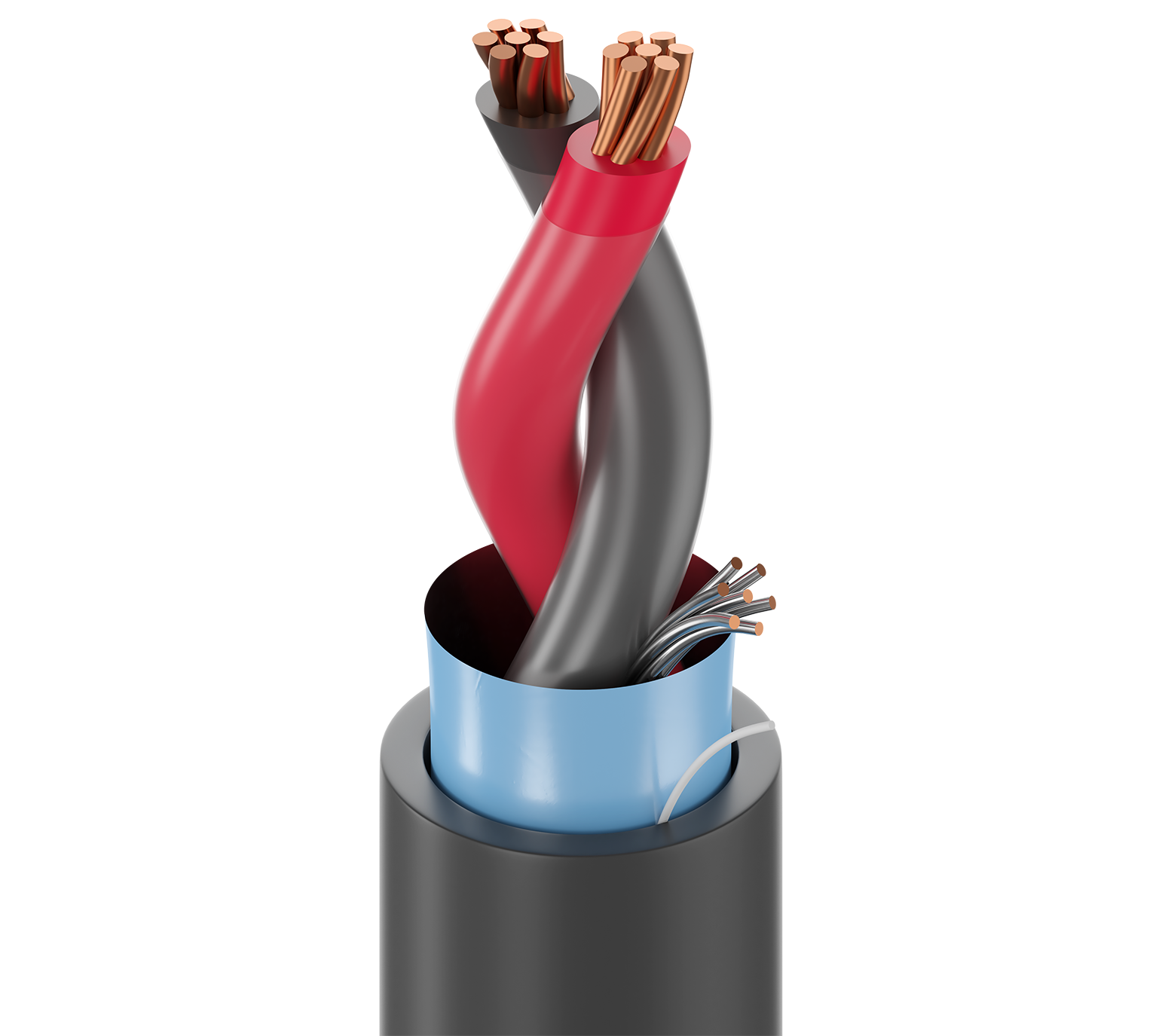

UL Instrumentation, 1 Pair 18AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

1120A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
1120A 01010000	Black	Reel	10,000 ft	612825107156	C Z	Order online

Specifications

Product Overview

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Overall Cable Diameter (Nominal)	0.278 in (7.06 mm)

Conductor

Element	Pair(s)
No. of Elements	1
Size	18 AWG
Stranding	7x26
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.088 in (2.2 mm)
Color Code	Black, Red

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	20 AWG (7x28) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.278 in (7.06 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	7.46 Ohm/1000ft (24.5 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	6.93 Ohm/1000ft
Nom. Inductance	0.1945 μH/ft (0.6381 μH/m)
Max. Current	14 Amps per conductor @ 30°C

Voltage

UL Voltage Rating	600 V (TC), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	57 lbs (26 kg)
Bulk Cable Weight	38 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-30°C to 90°C Dry/Wet

Bend Radius

Stationary Min.	3.3 in (84 mm)
Installation Min.	3.3 in (84 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 760, NPLF, TC
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision	Revision Number: 0.613 Revision Date: 04-10-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
