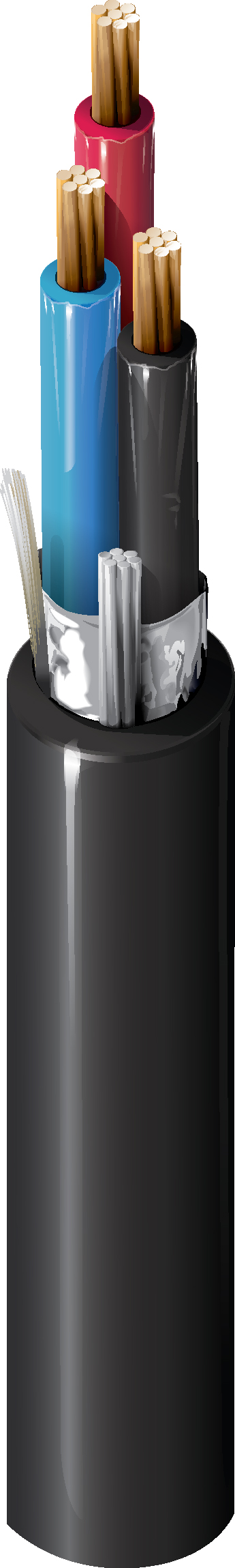

Product Number: 1093A

Inst, 4 Tri #18 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry 75C Wet

UL Instrumentation, 4 Triad 18AWG (7x26) Bare Copper, PVC-NYL Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry 75C Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

1093A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
1093A 0107500	Black	Reel	7,500 ft	612825106333	C Z	Order online

Specifications

Product Overview

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners

Construction Details

Conductor

Element	Triad(s)
No. of Elements	4
Size	18 AWG
Stranding	7x26
Material	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Triad(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.016 in (0.41 mm)	0.078 in (2.0 mm)	Black, White, Red and Numbered
				Black & White & Red and numbered 1, Black & White & Red and numbered 2, Black & White & Red and numbered 3, Black & White & Red and numbered 4

Inner Shield

Element	Each Triad
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	20 AWG (7x28) TC

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	18 AWG (7x26) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.064 in (1.6 mm)
Nom. Diameter	0.583 in
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	0.8 Ohm/1000ft (2.6 Ohm/km)

Electricals

Nom. Conductor DCR	6.79 Ohm/1000ft
Nom. Inner Shield DCR	1.33 Ohm/1000ft (4.36 Ohm/km)
Nom. Capacitance Cond-to-Cond	37 pF/ft (120 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	43 pF/ft (140 pF/m)
Max. Current	7 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	347 lbs (157 kg)
Bulk Cable Weight	181 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	2.32 in (58.9 mm)
Installation Min.	2.9 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 760
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Triad groups are numbered for ease of identification. Alternate color coding available upon request.

History

Update and Revision	Revision Number: 0.458 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
