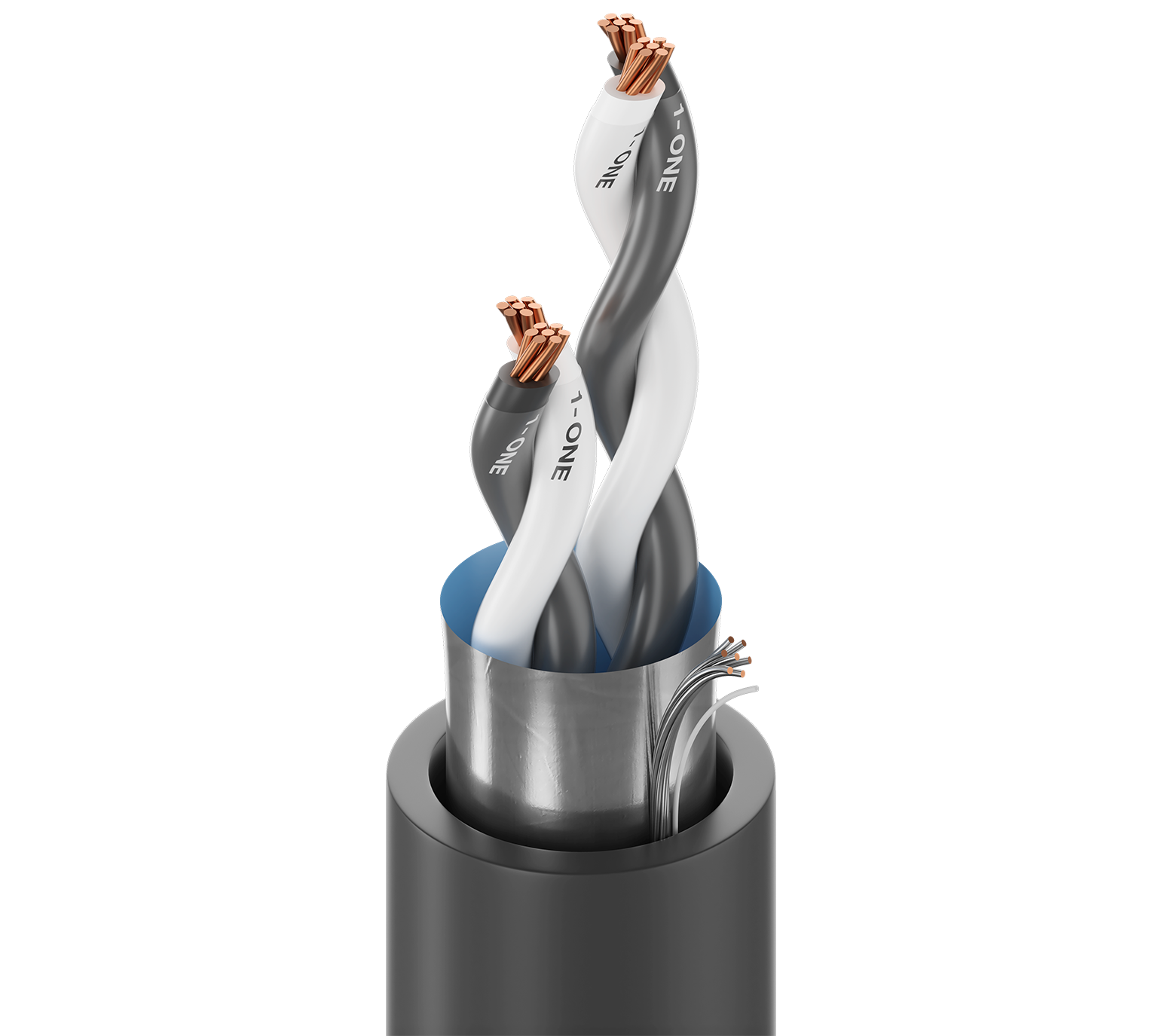

Product Number: 1069A

Inst, 2 Pr #16 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet

UL Instrumentation, 2 Pair 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

1069A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
1069A 0107500	Black	Reel	7,500 ft	612825105770	C Z	Order online

Specifications

Product Overview

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Overall Cable Diameter (Nominal)	0.420 in (10.7 mm)

Conductor

Element	Pair(s)
No. of Elements	2
Size	16 AWG
Stranding	7x24
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.101 in (2.57 mm)
Color Code	ICEA Chart E1

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	16 AWG (7x24) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.420 in (10.7 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	3.24 Ohm/1000ft (10.6 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	4.36 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	40 pF/ft (130 pF/m)
Max. Current	14 Amps per conductor @ 30°C

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	179 lbs (81.2 kg)
Bulk Cable Weight	94 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-30°C to 90°C Dry/Wet

Bend Radius

Stationary Min.	5.0 in (130 mm)
Installation Min.	5.0 in (130 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 760, NPLF, TC-ER
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	07-KA080011-MSHA

History

Update and Revision	Revision Number: 0.612 Revision Date: 04-10-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
