Fire Alarm, #18-4c BC, FPLP

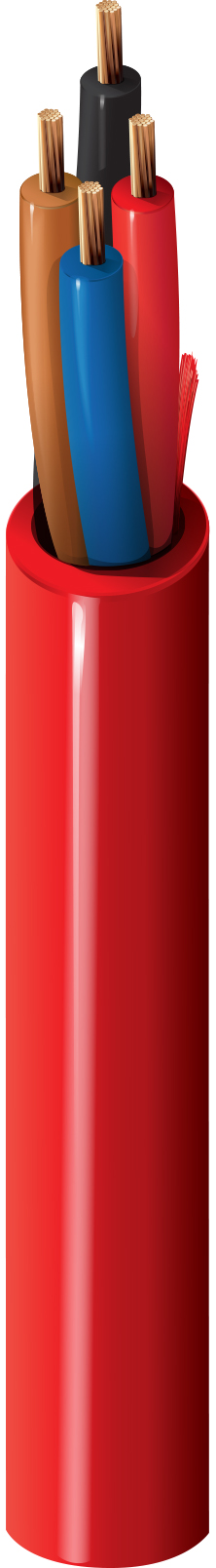

Fire Alarm Cable, Plenum-FPLP, 4-18 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Americas
- Status
- Active
- Orderable items
- 1
Part numbers
6302UL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 6302UL 002U1000 | Red | 612825175421 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification |
|---|
Physical Characteristics (Overall)
| Conductor Count | 4 |
|---|
Conductor
| AWG | 18 |
|---|---|
| Stranding | 7x26 |
| Material | BC - Bare Copper |
| No. of Conductors | 4 |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Material Trade Name | Flamarrest® |
| Nominal Wall Thickness | 0.009 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| 3 | Brown |
| 4 | Blue |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Material Trade Name | Flamarrest® |
| Nominal Diameter | 0.185 in |
| Nominal Wall Thickness | 0.015 in |
| Ripcord | Yes |
Construction and Dimensions
Cabling
| Twists | 4 twist/ft |
|---|
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 6.5 Ohm/1000ft |
|---|
Capacitance
| Nom. Capacitance Conductor to Conductor | 28.25 pF/ft |
|---|
Current
| Max. Recommended Current [A] | 6.4 Amps per Conductor at 25oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| Operating Temperature Range | 0°C To +75°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 30 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 89.5 lbs |
| Minimum Minor Axis Bend Radius | 1.875 in |
Standards
| NEC Articles | Article 760 |
|---|---|
| NEC/(UL) Compliance | FPLP |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | NFPA 262 Plenum Flame Test (UL910) |
|---|---|
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Non-Plenum Number | 5302UL |
|---|
History
| Update and Revision | Revision Number: 0.167 Revision Date: 05-05-2023 |
|---|
