Fire Alarm, #16-4c BC, Shielded, FPLP

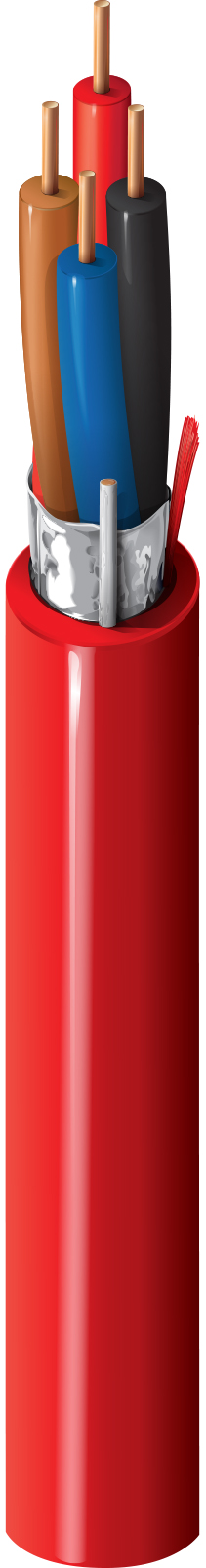

Fire Alarm Cable, Plenum-FPLP, 4-16 AWG solid bare copper conductors with Flamarrest® insulation, overall Beldfoil® shield, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6222FL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 6222FL 0021000 | Red | 612825174462 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.208 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 16 AWG |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.01 in (0.25 mm) |
| Nom. Insulation Diameter | 0.071 in (1.8 mm) |
| Color Code | Black, Red, Brown, Blue |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (Solid) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.208 in |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 16.7 Ohm/1000ft (54.8 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 4.18 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 43.5 pF/ft (143 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 78.3 pF/ft (257 pF/m) |
| Max. Current | 5 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 130 lbs (59 kg) |
|---|---|
| Bulk Cable Weight | 51 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C To +75°C |
Bend Radius
| Stationary Min. | 3.12 in (79.2 mm) |
|---|---|
| Installation Min. | 3.12 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL910) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5222FL |
History
| Update and Revision | Revision Number: 0.318 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
