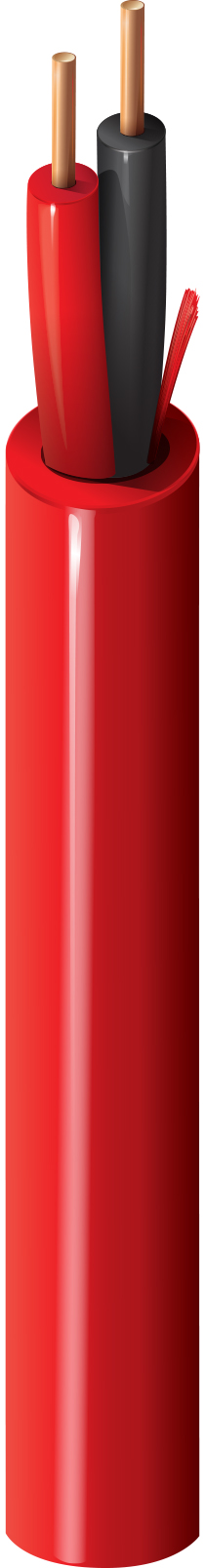

Fire Alarm, #14-2c BC, FPLP
Fire Alarm Cable, Plenum-FPLP, 2-14 AWG solid bare copper conductors with FEP insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6120UJ is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 6120UJ 0021000 | Red | 612825173694 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Addressable Systems, Circuits: Audio, Control, Initiating, Notification |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 14 |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Thickness | 0.007 in (0.18 mm) |
| Nom. Insulation Diameter | 0.078 in (2.0 mm) |
| Color Code | Black, Red |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.186 in (4.72 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.62 Ohm/1000ft (8.60 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 26 pF/ft (85 pF/m) |
| Nom. Inductance | 0.15 μH/ft (0.49 μH/m) |
| Max. Current | 8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 100 lbs (45 kg) |
|---|---|
| Bulk Cable Weight | 33 lbs/1000ft (49 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C To +75°C |
Bend Radius
| Stationary Min. | 1.48 in (37.6 mm) |
|---|---|
| Installation Min. | 1.48 in (37.6 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
Product Notes
| Notes | Teflon® is a trademark of DuPont. |
|---|
History
| Update and Revision | Revision Number: 0.568 Revision Date: 03-03-2026 |
|---|
