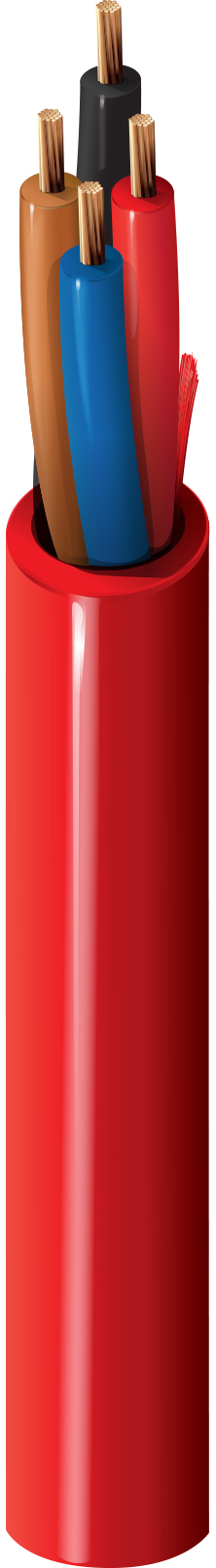

Fire Alarm, #14-4c Stranded BC, FPLP
Fire Alarm Cable, Plenum-FPLP, 4-14 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 14 AWG |
| Stranding | 19x26 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | .012 in (0.30 mm) |
| Nom. Insulation Diameter | .094 in (2.4 mm) |
| Color Code | Black, Red, Brown, Blue |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | .015 in (0.38 mm) |
| Nom. Diameter | .272 in (6.91 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.67 Ohm/1000ft (8.76 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 37 pF/ft (120 pF/m) |
| Max. Current | 25 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 192 lbs (87.1 kg) |
|---|---|
| Bulk Cable Weight | 68 lbs/1000ft (100 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C To +75°C |
Bend Radius
| Stationary Min. | 2.6 in (66 mm) |
|---|---|
| Installation Min. | 2.6 in (66 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL910) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.244 Revision Date: 06-18-2024 |
|---|
