Security & Sound, #12-2c, BC, O/A Foil, FPLP

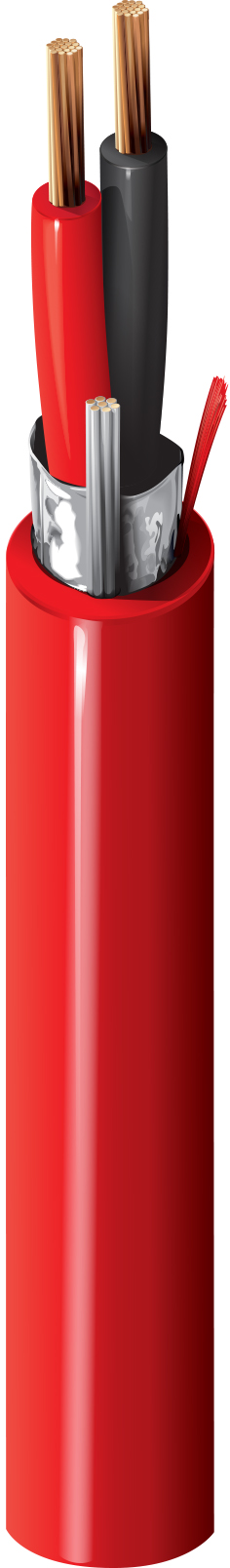

Security & Sound Cable , Plenum-FPLP, 2-12 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6000FL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 6000FL 0021000 | Red | 612825166085 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
|---|
Physical Characteristics (Overall)
| Conductor Count | 2 |
|---|
Conductor
| AWG | 12 |
|---|---|
| Stranding | 19x25 |
| Material | BC - Bare Copper |
| No. of Conductors | 2 |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Material Trade Name | Flamarrest® |
| Nominal Wall Thickness | 0.011 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
Outer Shield
| Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Material Trade Name | Beldfoil® |
| Coverage [%] | 100% |
| Drainwire Material | TC - Tinned Copper |
| Drainwire AWG | 20 |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter | 0.260 in |
| Nominal Wall Thickness | 0.015 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 1.6 Ohm/1000ft |
|---|---|
| Nominal Outer Shield DCR | 7.0 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | 93 pF/ft |
|---|---|
| Nom. Capacitance Conductor to Other Conductor to Shield | 167.5 pF/ft |
Current
| Max. Recommended Current [A] | 17.75 Amps per Conductor at 25oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| Operating Temperature Range | 0°C To +75°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 56 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 152 lbs |
| Minimum Minor Axis Bend Radius | 2.6 in |
Standards
| NEC Articles | Article 760 |
|---|---|
| NEC/(UL) Compliance | FPLP |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/11/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| UL Flammability | NFPA 262 |
|---|---|
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Non-Plenum Number | 5000FL |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
History
| Update and Revision | Revision Number: 0.87 Revision Date: 02-03-2025 |
|---|
