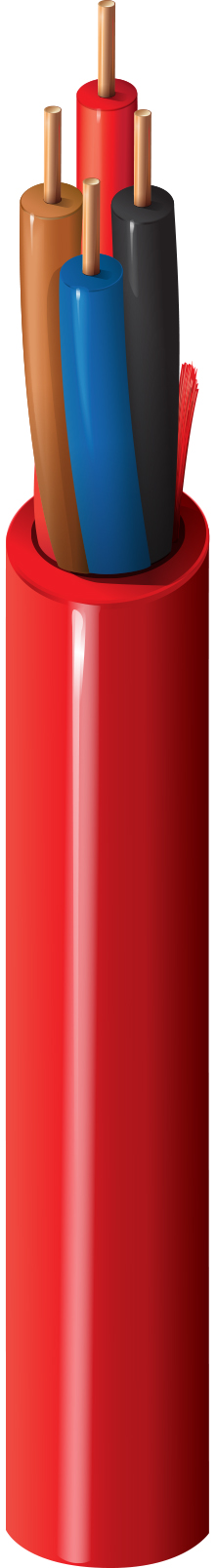

Fire Alarm, #22-4c BC, FPLR
Fire Alarm Cable, Riser-FPLR, 4-22 AWG solid bare copper conductors with polypropylene insulation, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5522UL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5522UL 002U1000 | Red | 612825164173 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.13 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.007 in (0.18 mm) |
| Nom. Insulation Diameter | 0.040 in (1.0 mm) |
| Color Code | Black, Red, Brown, Blue |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.017 in (0.43 mm) |
| Nom. Diameter | 0.13 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 18.4 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 24.5 pF/ft (80.4 pF/m) |
| Max. Current | 2.2 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 31.2 lbs (14.2 kg) |
|---|---|
| Bulk Cable Weight | 13 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1.04 in (26.4 mm) |
|---|---|
| Installation Min. | 1.04 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Plenum Number | 6522UL |
History
| Update and Revision | Revision Number: 0.307 Revision Date: 09-07-2025 |
|---|
