Fire Alarm, #22-2c BC, FPLR

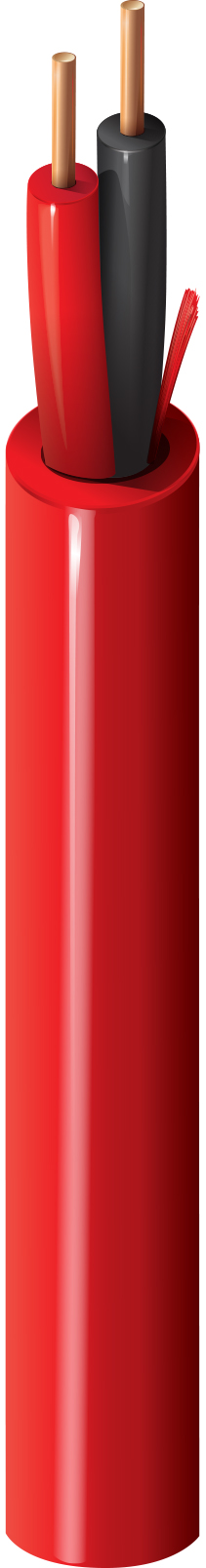

Fire Alarm Cable, Riser-FPLR, 2-22 AWG solid bare copper conductors with PVC insulation, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5520UL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5520UL 0021000 | Red | 612825366669 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.114 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PO - Polyolefin |
| Nom. Thickness | 0.007 in (0.18 mm) |
| Nom. Insulation Diameter | 0.040 in (1.0 mm) |
| Color Code | Black and Red |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.017 in (0.43 mm) |
| Nom. Diameter | 0.114 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 18.4 Ohm/1000ft |
| Max. Current | 2.8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 15.6 lbs (7.08 kg) |
|---|---|
| Bulk Cable Weight | 8 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 0.91 in (23 mm) |
|---|---|
| Installation Min. | 0.91 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser, FT4 |
| NEC / UL Compliance | Article 760, FPLR |
History
| Update and Revision | Revision Number: 0.134 Revision Date: 09-07-2025 |
|---|
Resources
Belden 5520UL technical datasheetSafe-T-Line Product BulletinFire Alarm Cable Product BulletinArmored Power-Limited Fire Alarm FPLPSound, Security & Alarm Cable Selection OverviewAccess Control Composite CablesNewGen Cables Product BulletinBelden Low Capacitance Digital Fire Alarm CablesWaterdog Cables Product Bulletin
