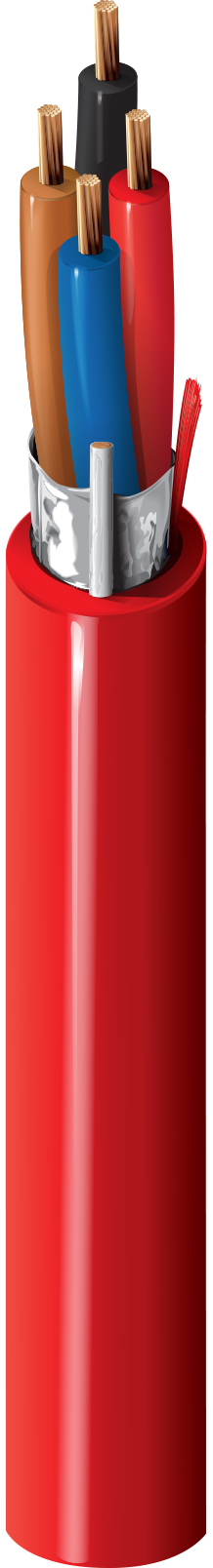

Fire Alarm, #22-4c BC, Shielded, FPLR
Fire Alarm Cable, Riser-FPLR, 4-22 AWG stranded bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord
- Availability
- Americas
- Status
- Active
- Orderable items
- 1
Part numbers
5502FL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5502FL 002U1000 | Red | 612825163312 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.146 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PO - Polyolefin |
| Nom. Thickness | 0.008 in (0.20 mm) |
| Nom. Insulation Diameter | 0.045 in (1.1 mm) |
| Color Code | Black, Red, Brown, Blue |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.017 in (0.43 mm) |
| Nom. Diameter | 0.146 in |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 16.75 Ohm/1000ft (54.95 Ohm/km) |
|---|
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 16.4 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 22.5 pF/ft (73.8 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 40.5 pF/ft (133 pF/m) |
| Max. Current | 2.2 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 41.9 lbs (19.0 kg) |
|---|---|
| Bulk Cable Weight | 16 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 2.19 in (55.6 mm) |
|---|---|
| Installation Min. | 2.19 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser, FT4 |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6502FL |
History
| Update and Revision | Revision Number: 0.177 Revision Date: 09-07-2025 |
|---|
Resources
Belden 5502FL technical datasheetSafe-T-Line Product BulletinFire Alarm Cable Product BulletinArmored Power-Limited Fire Alarm FPLPSound, Security & Alarm Cable Selection OverviewAccess Control Composite CablesNewGen Cables Product BulletinBelden Low Capacitance Digital Fire Alarm CablesWaterdog Cables Product BulletinDate: 2009-10-01
