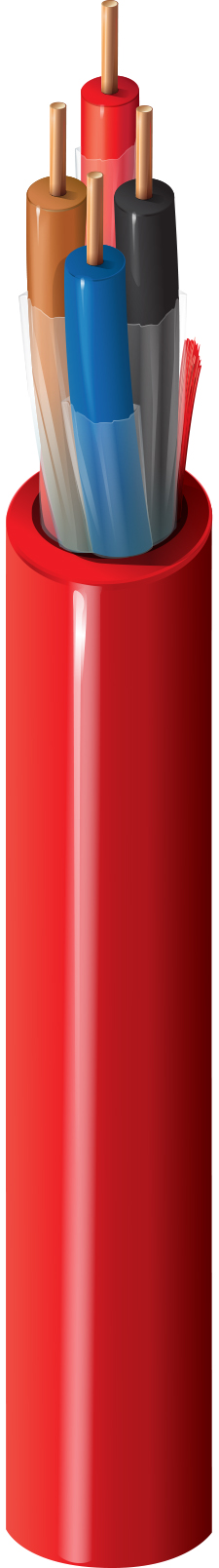

Fire Alarm, #18-4c BC, NPLF
Fire Alarm Cable, Rated-NPLF, 4-18 AWG solid bare copper conductors with PVC/nylon insulation, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5322UN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5322UN 002500 | Red | 612825160694 | Order online |
Specifications
Product Overview
| Suitable Applications | Fire Alarm, Non-Power Limited, Circuits: Audio, Control, Initiating, Notification |
|---|
Construction Details
Conductor
| Size | 18 |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
|---|---|
| Nom. Thickness | 0.021 in (0.53 mm) |
| Color Code | Black, Red, Brown, Blue |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.042 in (1.1 mm) |
| Nom. Diameter | 0.283 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 6.4 Ohm/1000ft (21 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 22.5 pF/ft (73.8 pF/m) |
| Max. Current | 4 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 150 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 78.4 lbs (35.6 kg) |
|---|---|
| Bulk Cable Weight | 48.2 lbs/1000ft (71.7 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 UL Loading |
|---|---|
| NEC / UL Compliance | Article 760, NPLF |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.301 Revision Date: 09-07-2025 |
|---|
