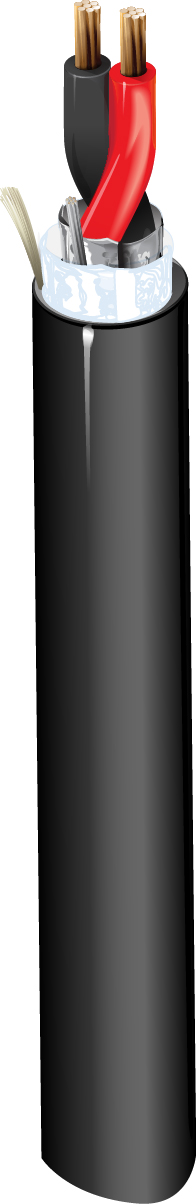

Security & Sound, #14-2c, BC, Overall Shield, CL3, FPL, PLTC, Water-Blocked Direct Burial
Security & Sound Cable, Rated-CL3, 2-14 AWG PVC-Nylon insulation, 100% Al. Foil Shield, Waterblocking tape, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial |
|---|
Construction Details
| Waterblocking | Waterblock Tape |
|---|---|
| Outer Jacket1 Table Notes | Waterblocking Tape |
| Overall Cable Diameter (Nominal) | .350 in (8.89 mm) |
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 14 AWG |
| Stranding | 19x27 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Nom. Thickness | .020 in (0.51 mm) |
| Color Code | Black, Red |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
| Notes | Waterblocking Tape |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | .040 in (1.0 mm) |
| Nom. Diameter | .350 in (8.89 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.7 Ohm/1000ft (8.9 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 46 pF/ft (150 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 83 pF/ft (270 pF/m) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 99 lbs (45 kg) |
|---|---|
| Bulk Cable Weight | 67 lbs/1000ft (100 kg/km) |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -20°C To +90°C |
Bend Radius
| Installation Min. | 3.15 in (80.0 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, UV Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685, FT4 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 760, CL3, FPL, PLTC |
| TIA/EIA Compliance | TIA455-82 Water Penetration Test |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.4 Revision Date: 07-11-2025 |
|---|
