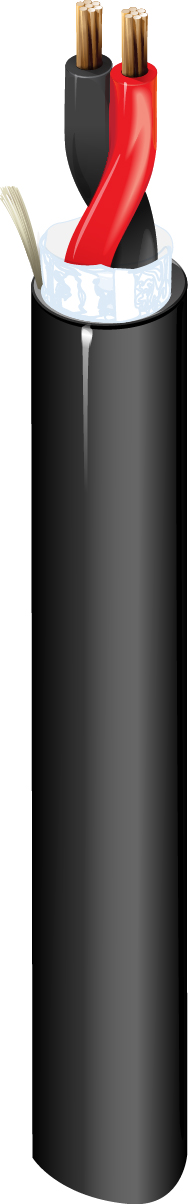

Security & Sound, #12-2c, BC, CL3, FPL, PLTC, Water-Blocked Direct Burial
Security & Sound Cable, Rated-CL3, 2-12 AWG PVC-Nylon insulation, Waterblocking tape, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial |
|---|
Construction Details
| Outer Shield Table Notes | Waterblocking Tape |
|---|---|
| Waterblocking | Waterblock Tape |
| Outer Jacket1 Table Notes | Waterblocking Tape |
| Overall Cable Diameter (Nominal) | .340 in (8.64 mm) |
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 12 |
| Stranding | 19x25 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
|---|---|
| Nom. Thickness | .020 in (0.51 mm) |
| Color Code | Black, Red |
Outer Shield
| Shield Type | No Shield |
|---|---|
| Notes | Waterblocking Tape |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | .040 in (1.0 mm) |
| Nom. Diameter | .340 in (8.64 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 1.7 Ohm/1000ft (5.6 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 35 pF/ft (110 pF/m) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 146 lbs (66.2 kg) |
|---|---|
| Bulk Cable Weight | 78 lbs (35 kg) |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -20°C To +90°C |
Bend Radius
| Installation Min. | 3.06 in (77.7 mm) |
|---|
Standards and Compliance
| Sustainability | CA Prop 65 |
|---|---|
| Flammability / Reaction to Fire | UL 1685 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 760, CL3, FPL, PLTC |
| TIA/EIA Compliance | TIA455-82 Water Penetration Test |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.6 Revision Date: 07-15-2025 |
|---|
