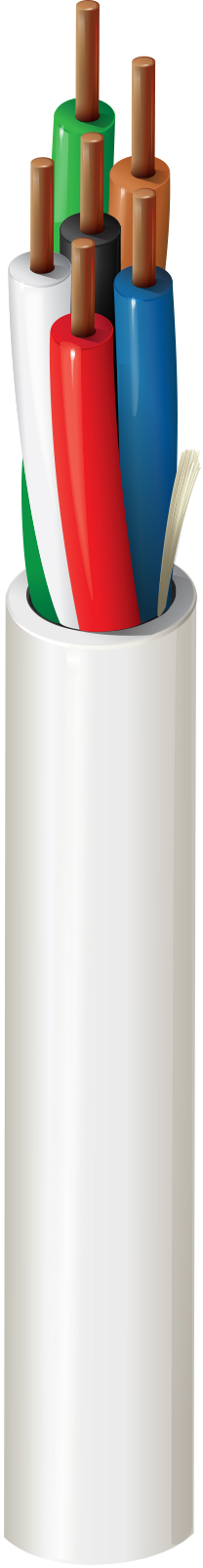

6524UE

Product Number: 6524UE

Security & Sound, #22-6c, BC, CMP

Security & Sound Cable, Plenum-CMP 6-22 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Availability
Global
Status
Active
Orderable items
2
Request a quoteOrder options (2)

Ships from and sold by A5 IT.

Part numbers

6524UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorUPCOrder
6524UE 877C500Natural612825353676Order online
6524UE 877U1000Natural612825178187Order online

Specifications

Product Overview

Suitable ApplicationsSecurity System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor

Size22
StrandingSolid
MaterialBC - Bare Copper

Insulation

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.009 in (0.23 mm)
Color CodeBlack, Red, White, Green, Brown, Blue

Outer Shield

MaterialNo Shield

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.015 in (0.38 mm)
Nom. Diameter0.162 in
RipcordYes

Electrical Characteristics

Electricals

Nom. Conductor DCR15.7 Ohm/1000ft (51.5 Ohm/km)
Nom. Capacitance Cond-to-Cond25 pF/ft (82 pF/m)
Max. Current2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating300 V RMS

Mechanical Characteristics

Max. Pull Tension46.8 lbs (21.2 kg)
Bulk Cable Weight21.5 lbs/1000ft (32.0 kg/km)

Temperature

Operating0°C To +75°C

Standards and Compliance

Flammability / Reaction to FireNFPA 262 Plenum Flame Test (UL910), FT6
NEC / UL ComplianceCMP
CEC / C(UL) ComplianceCMP.
European Directive ComplianceEU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Non-Plenum Number5524UE

History

Update and RevisionRevision Number: 0.302 Revision Date: 09-07-2025
