Security & Sound, #22-12c, BC, CMP

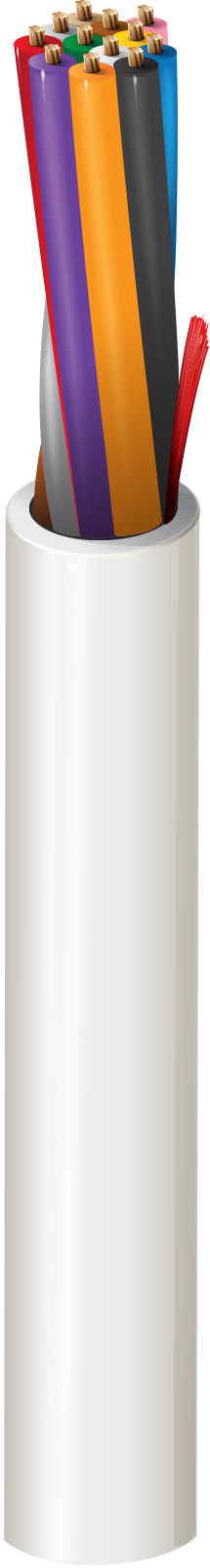

Security & Sound Cable, Plenum-CMP 12-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
6509UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 6509UE 8771000 | Natural | 612825178057 | C | Order online |
| 6509UE 877U1000 | Natural | 612825178040 | — | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 12 |
| Size | 22 |
| Stranding | 7x30 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.008 in (0.20 mm) |
| Nom. Insulation Diameter | 0.047 in (1.2 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.217 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 17.41 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 27.5 pF/ft (90.2 pF/m) |
| Max. Current | 1.4 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 109 lbs (49.4 kg) |
|---|---|
| Bulk Cable Weight | 39 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C To +75°C |
Bend Radius
| Stationary Min. | 2.17 in (55.1 mm) |
|---|---|
| Installation Min. | 2.17 in |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5509UE |
History
| Update and Revision | Revision Number: 0.304 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
