Product Number: 6508UE

Security & Sound, #22-10c, BC, CMP

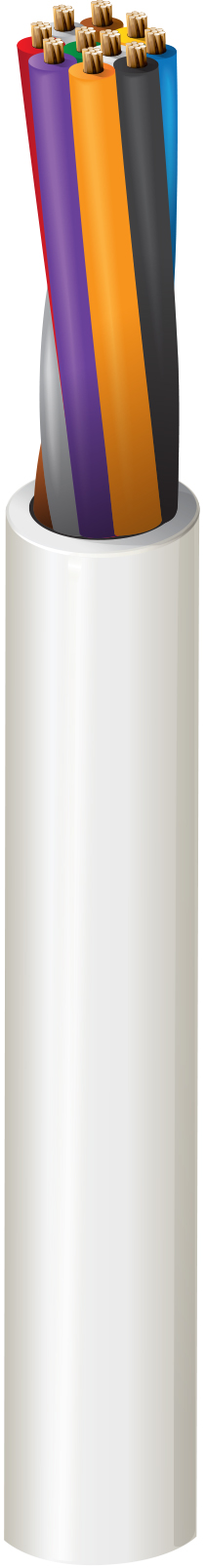

Name: Belden 6508UE
Brand: Belden
SKU: 6508UE

Security & Sound Cable, Plenum-CMP 10-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Ships from and sold by A5 IT.

Part numbers

6508UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
6508UE 877U1000	Natural	612825178033	Order online

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Overall Cable Diameter (Nominal)	0.218 in

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.009 in (0.23 mm)
Nom. Insulation Diameter	0.047 in (1.2 mm)
Color Code	Black, Red, White, Green, Brown, Blue, Orange, Yellow, Violet, Gray

Material	No Shield

UL Voltage Rating	300 V

Max. Pull Tension	91 lbs (41 kg)
Bulk Cable Weight	35.5 lbs/1000ft

UL Temperature	75°C
Operating	0°C To +75°C

Stationary Min.	2.18 in (55.4 mm)
Installation Min.	2.18 in

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262 (UL910), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	5508UE
