Security & Sound, #22-8c, BC, CMP

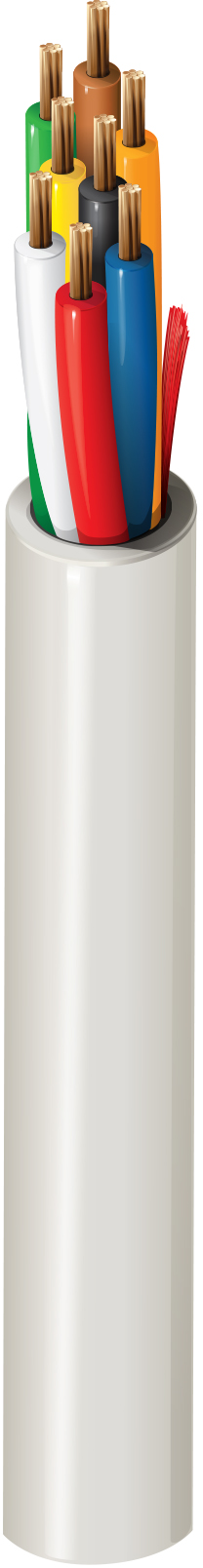

Security & Sound Cable, Plenum-CMP 8-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
6506UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 6506UE 8771000 | Natural | 612825178002 | C | Order online |
| 6506UE 877U1000 | Natural | 612825177982 | — | Order online |
| 6506UE 877U500 | Natural | 612825177999 | — | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 8 |
| Size | 22 |
| Stranding | 7x30 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.009 in (0.23 mm) |
| Nom. Insulation Diameter | 0.047 in (1.2 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.186 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 17.41 Ohm/1000ft |
|---|---|
| Max. Current | 2 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 72.8 lbs (33.0 kg) |
|---|---|
| Bulk Cable Weight | 29 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C To +75°C |
Bend Radius
| Stationary Min. | 1.86 in (47.2 mm) |
|---|---|
| Installation Min. | 1.86 in |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5506UE |
History
| Update and Revision | Revision Number: 0.302 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
