Security & Sound, #22-6c BC, CMP

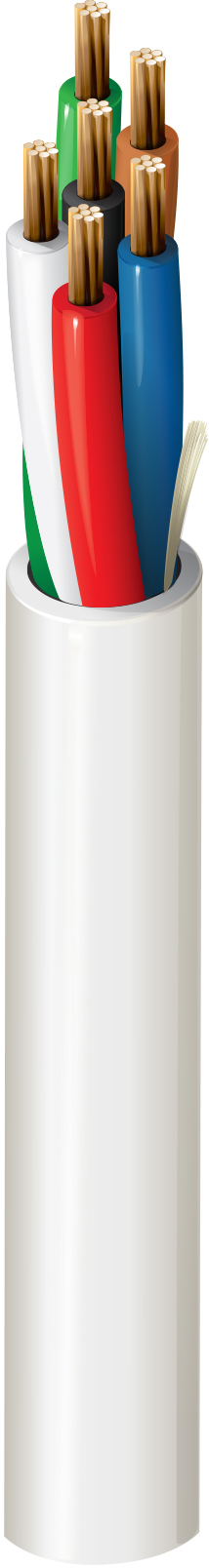

Security & Sound Cable, Plenum-CMP 6-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
6504UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 6504UE 8771000 | Natural | 612825177913 | Order online |
| 6504UE 877500 | Natural | 612825177920 | Order online |
| 6504UE 877C500 | Natural | 612825177890 | Order online |
| 6504UE 877U1000 | Natural | 612825177906 | Order online |
| 6504UE 877U500 | Natural | 612825352402 | Order online |
| 6504UE 877U500 | Natural | 612825352402 | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.165 in (4.19 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 6 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.008 in (0.20 mm) |
| Nom. Insulation Diameter | 0.045 in (1.1 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.165 in (4.19 mm) |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 18.54 Ohm/1000ft (60.83 Ohm/km) |
|---|
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 16 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 27 pF/ft (89 pF/m) |
| Max. Current | 1.9 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMP) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 54 lbs (24 kg) |
|---|---|
| Bulk Cable Weight | 21 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C to +75°C |
Bend Radius
| Stationary Min. | 1.65 in (41.9 mm) |
|---|---|
| Installation Min. | 1.65 in (41.9 mm) |
Standards and Compliance
| Environmental Suitability | Indoor - Plenum, Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5504UE |
History
| Update and Revision | Revision Number: 0.428 Revision Date: 09-07-2025 |
|---|
