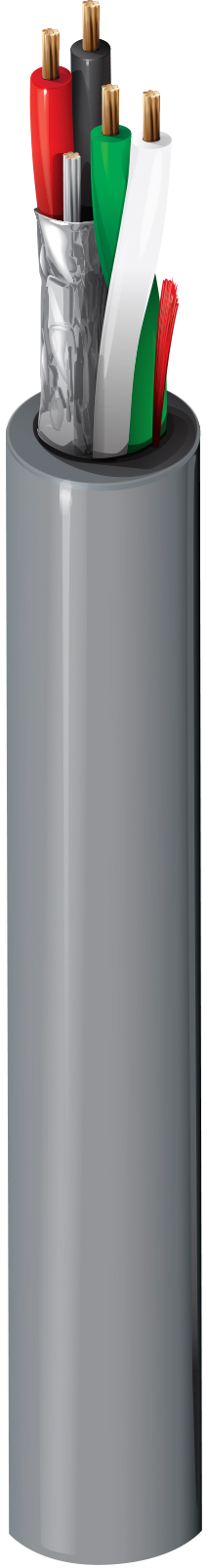

Product Number: 6502GE

Security & Sound, #22-2c, BC, Shielded, CMP

Security & Sound Cable, Plenum-CMP, 1-22 AWG stranded bare copper pair with Flamarrest® insulation and Beldfoil® shield, 2-22 AWG stranded bare copper conductors with insulation, overall Flamarrest® jacket with ripcord

Availability: Global
Status: Active
Orderable items: 7

Ships from and sold by A5 IT.

Part numbers

6502GE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
6502GE 010C100	Black	612825177661	Order online
6502GE 010U1000	Black	612825177678	Order online
6502GE 008U1000	Gray	612825177623	Order online
6502GE 8771000	Natural	612825177708	Order online
6502GE 877U1000	Natural	612825177692	Order online
6502GE 009C100	White	612825177630	Order online
6502GE 009U1000	White	612825177647	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Pair(s)	1	22	7x30	BC - Bare Copper
Conductor(s)	2	22	7x30	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Pair(s)	PVC - Polyvinyl Chloride	0.009 in (0.23 mm)	0.047 in (1.2 mm)	Black & Red
Conductor(s)	PVC - Polyvinyl Chloride	0.009 in (0.23 mm)	0.047 in (1.2 mm)	White, Green

Inner Shield

Element	Shield Type	Material	Coverage	Drainwire Type
Each Pair	Tape	Bi-Laminate (Alum+Poly)	100%	16 AWG (7x24) TC
Conductor(s)	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.155 in (3.94 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Inductance	Max. Current
Pair(s)	17.24 Ohm/1000ft	3.23 Ohm/1000ft (10.6 Ohm/km)	55 pF/ft (180 pF/m)	99 pF/ft (320 pF/m)	0.17 μH/ft (0.56 μH/m)	2.2 Amps per Conductor at 25oC
Conductor(s)	17.2 Ohm/1000ft (56.4 Ohm/km)

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	36.4 lbs (16.5 kg)
Bulk Cable Weight	19 lbs/1000ft

Temperature

UL Temperature	75°C

Bend Radius

Stationary Min.	1.55 in (39.4 mm)
Installation Min.	1.55 in (39.4 mm)

Standards and Compliance

Environmental Suitability	Outdoor
Flammability / Reaction to Fire	NFPA 262 (UL910), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	5502GE
