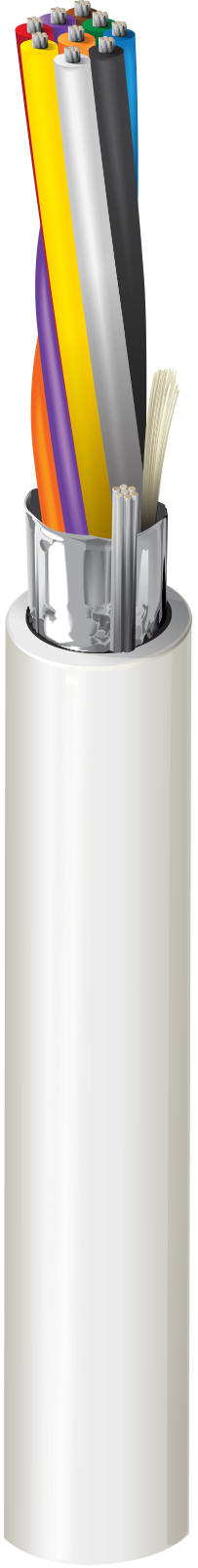

Product Number: 6407FE

Security & Sound, #20-9c, BC, Shielded, CMP

Security & Sound Cable, Plenum-CMP, 9-20 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

6407FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
6407FE 8771000	Natural	612825176848	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Conductor

Element	Conductor(s)
No. of Elements	9
Size	20
Stranding	7x28
Material	BC - Bare Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.009 in (0.23 mm)
Nom. Insulation Diameter	0.047 in (1.2 mm)
Color Code	Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.229 in (5.82 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	14.41 Ohm/1000ft (47.28 Ohm/km)

Electricals

Nom. Conductor DCR	10.82 Ohm/1000ft (35.50 Ohm/km)
Nom. Capacitance Cond-to-Cond	36 pF/ft (120 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	64.8 pF/ft (213 pF/m)
Max. Current	2.6 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	140 lbs (64 kg)
Bulk Cable Weight	50 lbs/1000ft (74 kg/km)

Temperature

UL Temperature	75°C
Operating	0°C To +75°C

Bend Radius

Stationary Min.	2.29 in (58.2 mm)
Installation Min.	2.29 in (58.2 mm)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262 (UL910), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	5407FE
