Product Number: 6402FE

Security & Sound, #20-4c, BC, Shielded, CMP

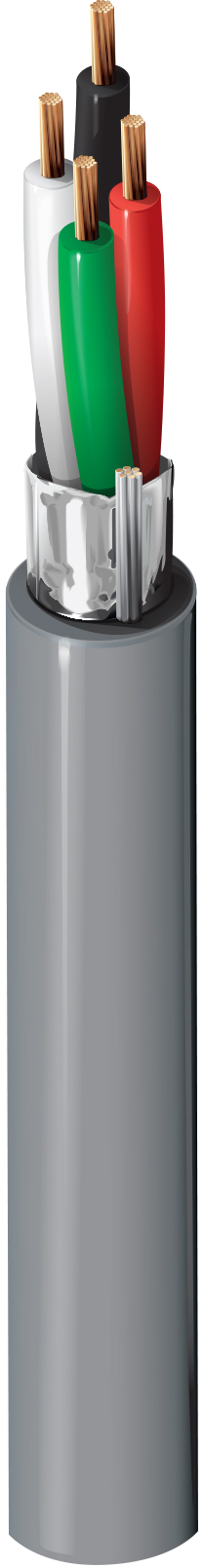

Security & Sound Cable, Plenum-CMP, 4-20 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

6402FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
6402FE 8771000	Natural	612825176749	C	Order online
6402FE 877U1000	Natural	612825176732	—	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Conductor

Element	Conductor(s)
No. of Elements	4
Size	20
Stranding	7x28
Material	BC - Bare Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.009 in (0.23 mm)
Nom. Insulation Diameter	0.054 in (1.4 mm)
Color Code	Black, Red, White, Green

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	22 AWG (7x30) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.164 in
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	15.8 Ohm/1000ft (51.8 Ohm/km)

Electricals

Nom. Conductor DCR	11.1 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	36 pF/ft (120 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	64.8 pF/ft (213 pF/m)
Max. Current	3 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	62.4 lbs (28.3 kg)
Bulk Cable Weight	24 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	0°C To +75°C

Bend Radius

Stationary Min.	1.64 in (41.7 mm)
Installation Min.	1.64 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	5402FE
