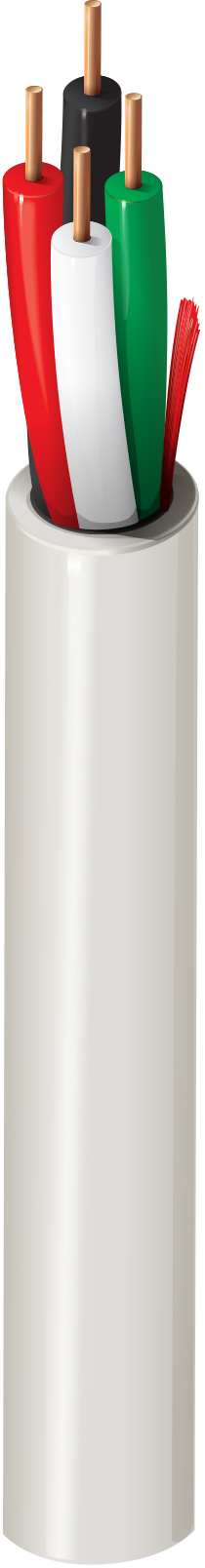

6322UE

Product Number: 6322UE

Security & Sound, #18-4c, BC, CMP

Security & Sound Cable, Plenum-CMP 4-18 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

6322UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorUPCOrder
6322UE 877U1000Natural612825175964Order online

Specifications

Product Overview

Suitable ApplicationsSecurity System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Overall Cable Diameter (Nominal)0.171 in

Conductor

ElementConductor(s)
No. of Elements4
Size18 AWG
StrandingSolid
MaterialBC - Bare Copper

Insulation

ElementConductor(s)
MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.01 in (0.25 mm)
Nom. Insulation Diameter0.0605 in (1.54 mm)
Color CodeBlack, Red, White, Green

Outer Shield

MaterialNo Shield

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.015 in (0.38 mm)
Nom. Diameter0.171 in
RipcordYes

Electrical Characteristics

Electricals

Nom. Conductor DCR6.65 Ohm/1000ft
Nom. Capacitance Cond-to-Cond29 pF/ft (95 pF/m)
Max. Current4 Amps per Conductor at 25oC

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Max. Pull Tension78.4 lbs (35.6 kg)
Bulk Cable Weight28.8 lbs/1000ft

Temperature

UL Temperature75°C
Operating0°C To +75°C

Bend Radius

Stationary Min.1.71 in (43.4 mm)
Installation Min.1.71 in

Standards and Compliance

Environmental SuitabilityIndoor
Flammability / Reaction to FireNFPA 262 (UL910), FT6
NEC / UL ComplianceArticle 800, CMP
CEC / C(UL) ComplianceCMP.
European Directive ComplianceEU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Non-Plenum Number5322UE

History

Update and RevisionRevision Number: 0.299 Revision Date: 09-07-2025
