Security & Sound, #18-9c, BC, CMP

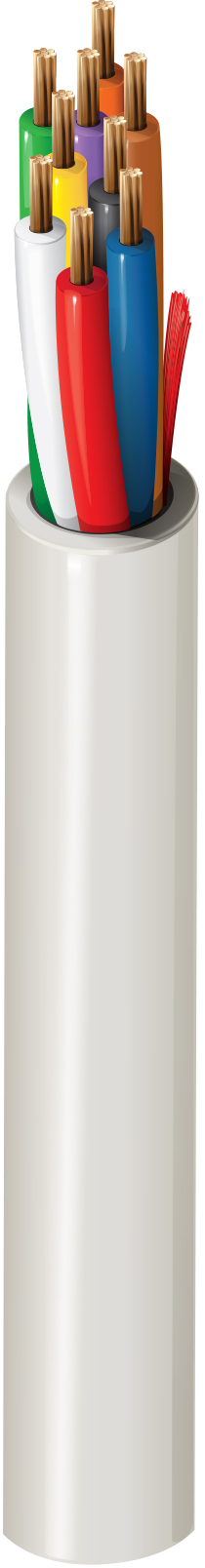

Security & Sound Cable, Plenum-CMP 9-18 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6307UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 6307UE 8771000 | Natural | 612825175612 | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Physical Characteristics (Overall)
| Conductor Count | 9 |
|---|
Conductor
| AWG | 18 |
|---|---|
| Stranding | 7x26 |
| Material | BC - Bare Copper |
| No. of Conductors | 9 |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Material Trade Name | Flamarrest® |
| Nominal Wall Thickness | 0.009 in |
Color Chart
| Color |
|---|
| Black |
| Red |
| White |
| Green |
| Brown |
| Blue |
| Orange |
| Yellow |
| Purple |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Material Trade Name | Flamarrest® |
| Nominal Diameter | 0.262 in |
| Nominal Wall Thickness | 0.015 in |
| Ripcord | Yes |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 6.5 Ohm/1000ft |
|---|
Capacitance
| Nom. Capacitance Conductor to Conductor | 30 pF/ft |
|---|
Current
| Max. Recommended Current [A] | 3.5 Amps per Conductor at 25oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| Operating Temperature Range | 0°C To +75°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 64.1 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 201.6 lbs |
| Minimum Minor Axis Bend Radius | 2.6 in |
Standards
| NEC/(UL) Compliance | CMP |
|---|---|
| CEC/C(UL) Compliance | CMP |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | NFPA 262 Plenum Flame Test (UL910) |
|---|---|
| CSA Flammability | FT6 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Non-Plenum Number | 5307UE |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
History
| Update and Revision | Revision Number: 0.298 Revision Date: 02-03-2025 |
|---|
