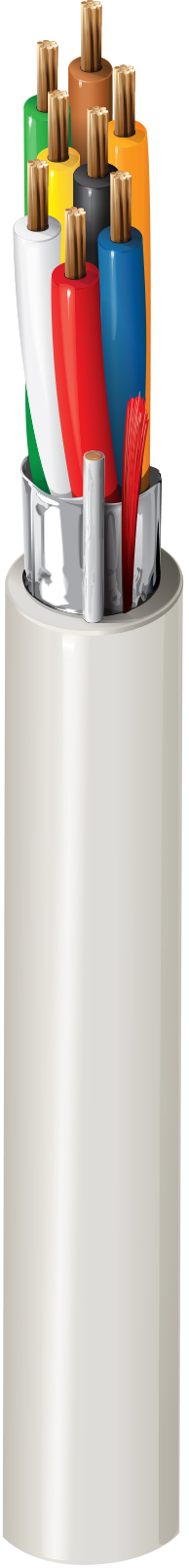

Product Number: 6306FE

Security & Sound, #18-8c, BC, Shielded, CMP

Security & Sound Cable, Plenum-CMP, 8-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

6306FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
6306FE 8771000	Natural	612825175551	C	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Overall Cable Diameter (Nominal)	0.246 in (6.25 mm)

Conductor

Element	Conductor(s)
No. of Elements	8
Size	18 AWG
Stranding	7x26
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.009 in (0.23 mm)
Nom. Insulation Diameter	0.063 in (1.6 mm)
Color Code	Black, Red, White, Green, Brown, Blue, Orange, Yellow

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.246 in (6.25 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	13.1 Ohm/1000ft (43.0 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	6.5 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	42 pF/ft (140 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	76 pF/ft (250 pF/m)
Max. Current	9.8 Amps per conductor @ 25°C

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	185 lbs (83.9 kg)
Bulk Cable Weight	63 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	0°C to +75°C

Bend Radius

Stationary Min.	2.5 in (64 mm)
Installation Min.	2.5 in (64 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	5306FE
