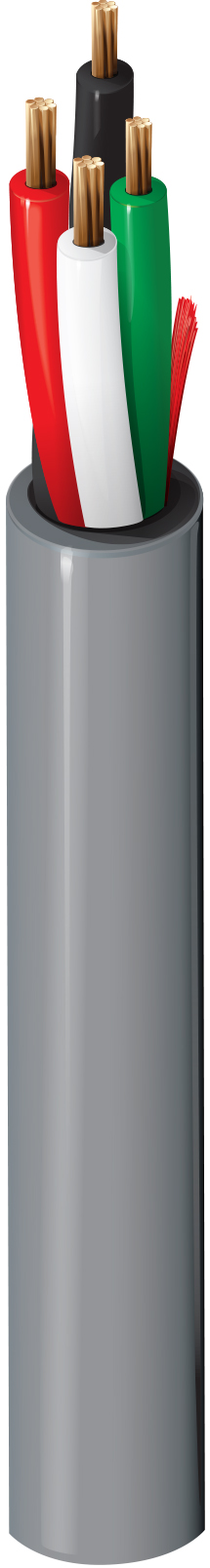

Security & Sound, #12-4c, BC, CL2P
Security & Sound Cable, Plenum-CL2P 4-12 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6002UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 6002UE 8771000 | Natural | 612825171812 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 12 |
| Stranding | 19x25 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.011 in (0.28 mm) |
| Nom. Insulation Diameter | 0.048 in (1.2 mm) |
| Color Code | Black, White, Red, Green |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.018 in (0.46 mm) |
| Nom. Diameter | 0.304 in (7.72 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 1.65 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 39 pF/ft (130 pF/m) |
| Max. Current | 9.6 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 150 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 304 lbs (138 kg) |
|---|---|
| Bulk Cable Weight | 103 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C To +75°C |
Bend Radius
| Stationary Min. | 3.04 in (77.2 mm) |
|---|---|
| Installation Min. | 3.04 in (77.2 mm) |
Standards and Compliance
| Flammability / Reaction to Fire | NFPA 262 (UL910) |
|---|---|
| NEC / UL Compliance | Article 800, CL2P |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5002UE |
History
| Update and Revision | Revision Number: 0.406 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
