Security & Sound, #22-4c, BC, CM

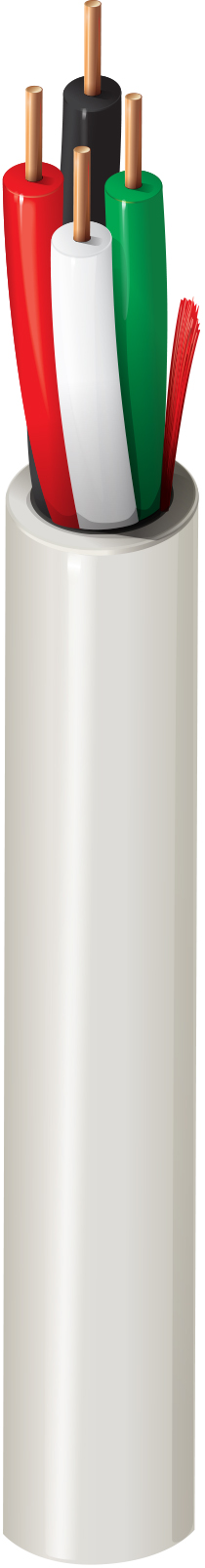

Security & Sound Cable, Rated-CM, 4-22 AWG solid bare copper conductors with polyolefin insulation, PVC jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 9
Part numbers
5582UG is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5582UG U4FC1000 | Beige U4F | 612825164593 | Order online |
| 5582UG U4FC500 | Beige U4F | 612825164609 | Order online |
| 5582UG U4FU1000 | Beige U4F | 612825164616 | Order online |
| 5582UG 001C500 | Brown | 612825164623 | Order online |
| 5582UG 008C1000 | Gray | 612825164630 | Order online |
| 5582UG 008C500 | Gray | 612825164647 | Order online |
| 5582UG 009C1000 | White | 612825164654 | Order online |
| 5582UG 009C500 | White | 612825164661 | Order online |
| 5582UG 009U1000 | White | 612825164678 | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Alarm, Intercom/PA, Single Line Telephone, Station Wire |
|---|
Physical Characteristics (Overall)
| Conductor Count | 4 |
|---|
Conductor
| AWG | 22 |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Conductors | 4 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nominal Wall Thickness | 0.006 in |
Color Chart
| Color |
|---|
| Black |
| Red |
| Yellow |
| Green |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter | 0.122 in |
| Nominal Wall Thickness | 0.015 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 15.7 Ohm/1000ft |
|---|
Current
| Max. Recommended Current [A] | 2.2 Amps per Conductor at 25oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 75°C |
|---|---|
| Operating Temperature Range | -20°C To +75°C |
Mechanical Characteristics
| Bulk Cable Weight | 13 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 31.2 lbs |
| Minimum Minor Axis Bend Radius | 1.2 in |
Standards
| NEC Articles | Article 800 |
|---|---|
| NEC/(UL) Compliance | CM |
| CEC/C(UL) Compliance | CM |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL1685 UL Loading |
|---|---|
| CSA Flammability | FT1 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
History
| Update and Revision | Revision Number: 0.296 Revision Date: 02-03-2025 |
|---|
