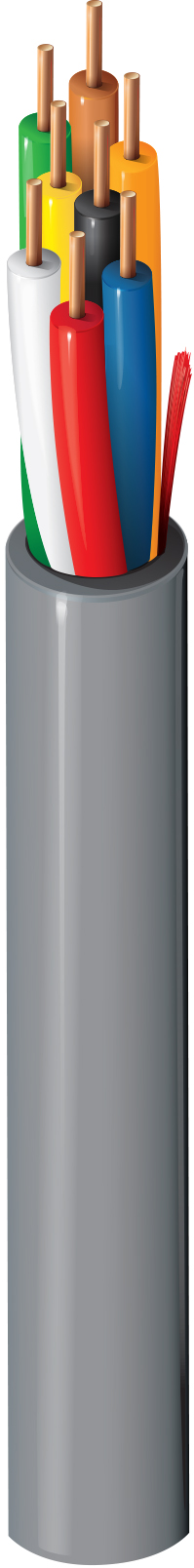

Security & Sound, #22-8c, BC, CMR
Security & Sound Cable, Riser-CMR, 8-22 AWG solid bare copper conductors with PVC insulation, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5526UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5526UE 0081000 | Gray | 612825164210 | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.166 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 8 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PO - Polyolefin |
| Nom. Thickness | 0.007 in (0.18 mm) |
| Nom. Insulation Diameter | 0.040 in (1.0 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.017 in (0.43 mm) |
| Nom. Diameter | 0.166 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 18.4 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 24 pF/ft (79 pF/m) |
| Max. Current | 1.9 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 62.4 lbs (28.3 kg) |
|---|---|
| Bulk Cable Weight | 24 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1.66 in (42.2 mm) |
|---|---|
| Installation Min. | 1.66 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser, FT4 |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6526UE |
History
| Update and Revision | Revision Number: 0.301 Revision Date: 09-07-2025 |
|---|
