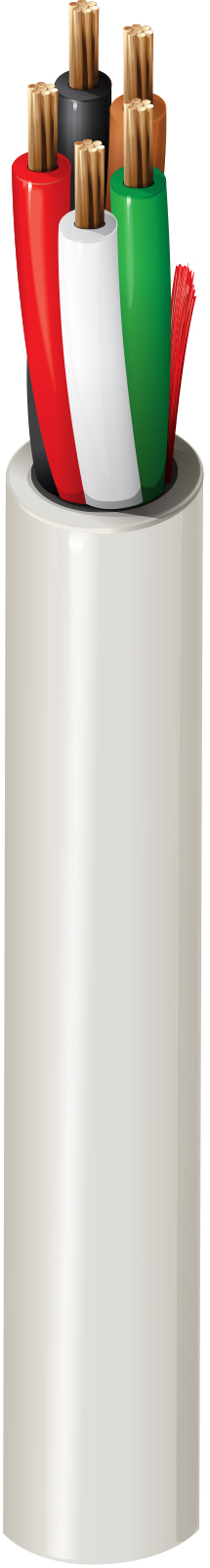

5503UE

Product Number: 5503UE

Security & Sound, #22-5c, BC, CMR

Security & Sound Cable, Riser-CMR, 5-22 AWG stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Availability
Global
Status
Active
Orderable items
2
Request a quoteOrder options (2)

Ships from and sold by A5 IT.

Part numbers

5503UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorUPCFootnoteOrder
5503UE 0081000Gray612825163732COrder online
5503UE 008U1000Gray612825163725—Order online

Specifications

Product Overview

Suitable ApplicationsSecurity System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor

ElementConductor(s)
No. of Elements5
Size22
Stranding7x30
MaterialBC - Bare Copper

Insulation

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.008 in (0.20 mm)
Nom. Insulation Diameter0.047 in (1.2 mm)
Color CodeBlack, Red, White, Green, Brown

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.017 in (0.43 mm)
Nom. Diameter0.154 in
RipcordYes

Electrical Characteristics

Electricals

Nom. Conductor DCR17.24 Ohm/1000ft
Nom. Capacitance Cond-to-Cond25 pF/ft (82 pF/m)
Max. Current2.2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Max. Pull Tension45.5 lbs (20.6 kg)
Bulk Cable Weight18 lbs/1000ft

Temperature

UL Temperature75°C
Operating-20°C To +75°C

Bend Radius

Stationary Min.1.54 in (39.1 mm)
Installation Min.1.54 in

Standards and Compliance

Environmental SuitabilityOutdoor
Flammability / Reaction to FireUL1666 Riser, FT4
NEC / UL ComplianceArticle 800, CMR
CEC / C(UL) ComplianceCMG.
European Directive ComplianceEU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)

History

Update and RevisionRevision Number: 0.295 Revision Date: 09-07-2025
FootnoteC - CRATE REEL PUT-UP.
