Product Number: 5503FE

Security & Sound, #22-5c, BC, Shielded, CMR

Name: Belden 5503FE
Brand: Belden
SKU: 5503FE

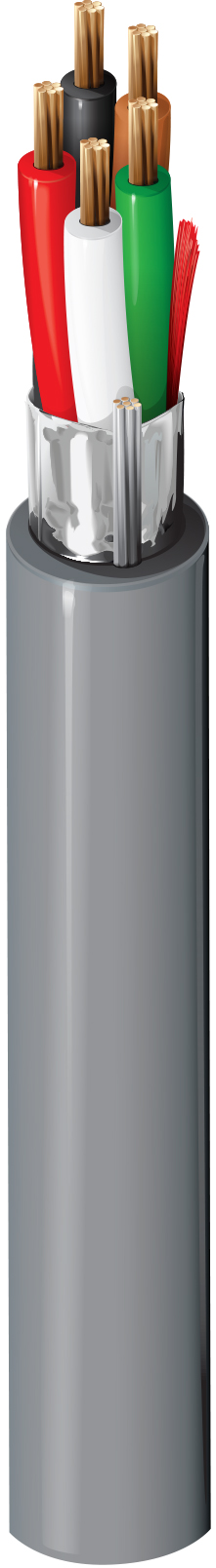

Security & Sound Cable, Riser-CMR, 5-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Ships from and sold by A5 IT.

Part numbers

5503FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
5503FE 0081000	Gray	612825163718	Order online

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Overall Cable Diameter (Nominal)	0.157 in

Nom Outer Shield DCR	15.3 Ohm/1000ft (50.2 Ohm/km)

Element	Conductor(s)
Nom. Conductor DCR	16.4 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	22 pF/ft (72 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	40 pF/ft (130 pF/m)
Nom. Inductance	0.18 μH/ft (0.59 μH/m)
Max. Current	2.2 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	51 lbs (23 kg)
Bulk Cable Weight	18 lbs/1000ft

UL Temperature	75°C
Operating	-20°C To +75°C

Stationary Min.	1.57 in (39.9 mm)
Installation Min.	1.57 in

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL1666 Riser, FT4
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6503FE
