5502UG

Product Number: 5502UG

Security & Sound, #22-4c, BC, CM

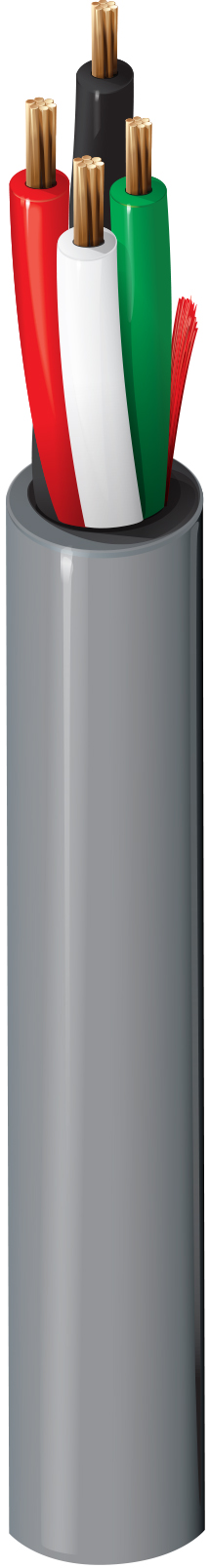

Security & Sound Cable, Rated-CM, 4-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket

Availability
Global
Status
Active
Orderable items
24
Request a quoteOrder options (24)

Ships from and sold by A5 IT.

Part numbers

5502UG is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorUPCOrder
5502UG U4FC500Beige U4F612825163442Order online
5502UG U4FU1000Beige U4F612825163459Order online
5502UG 006C1000Blue, Light612825163541Order online
5502UG 006C500Blue, Light612825163558Order online
5502UG 006U1000Blue, Light612825163565Order online
5502UG 001C500Brown612825163466Order online
5502UG 001U1000Brown612825163473Order online
5502UG 008C1000Gray612825163602Order online
5502UG 008C500Gray612825163619Order online
5502UG 008U1000Gray612825163626Order online
5502UG 008U500Gray612825163633Order online
5502UG 005C1000Green, Dark—Order online
5502UG 005C500Green, Dark612825163534Order online
5502UG 003C1000Orange612825163480Order online
5502UG 003C500Orange612825163497Order online
5502UG 007C1000Violet612825163572Order online
5502UG 007C500Violet612825163589Order online
5502UG 007U1000Violet612825163596Order online
5502UG 009C1000White612825163640Order online
5502UG 009C500White612825163657Order online
5502UG 009U1000White612825163664Order online
5502UG 004C1000Yellow612825163503Order online
5502UG 004C500Yellow612825163510Order online
5502UG 004U1000Yellow612825163527Order online

Specifications

Product Overview

Suitable ApplicationsSecurity System, Alarm, Intercom/PA, Single Line Telephone

Construction Details

Overall Cable Diameter (Nominal)0.131 in

Conductor

ElementConductor(s)
No. of Elements4
Size22 AWG
Stranding7x30
MaterialBC - Bare Copper

Insulation

ElementConductor(s)
MaterialPP - Polypropylene
Nom. Thickness0.007 in (0.18 mm)
Nom. Insulation Diameter0.042 in (1.1 mm)
Color CodeBlack, Red, White, Green

Outer Shield

MaterialNo Shield

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.015 in (0.38 mm)
Nom. Diameter0.131 in
RipcordYes

Electrical Characteristics

Electricals

ElementConductor(s)
Nom. Conductor DCR16.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond20 pF/ft (66 pF/m)
Max. Current2.2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Max. Pull Tension36.4 lbs (16.5 kg)
Bulk Cable Weight13 lbs/1000ft

Temperature

UL Temperature75°C
Operating-20°C To +75°C

Bend Radius

Stationary Min.1.31 in (33.3 mm)
Installation Min.1.31 in

Standards and Compliance

Environmental SuitabilityIndoor
Flammability / Reaction to FireUL1685 UL Loading
NEC / UL ComplianceArticle 800, CM
CEC / C(UL) ComplianceCM.
European Directive ComplianceEU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)

History

Update and RevisionRevision Number: 0.296 Revision Date: 09-07-2025
