Product Number: 5501GE

Security & Sound, #22-2c, BC, Shielded, CMR

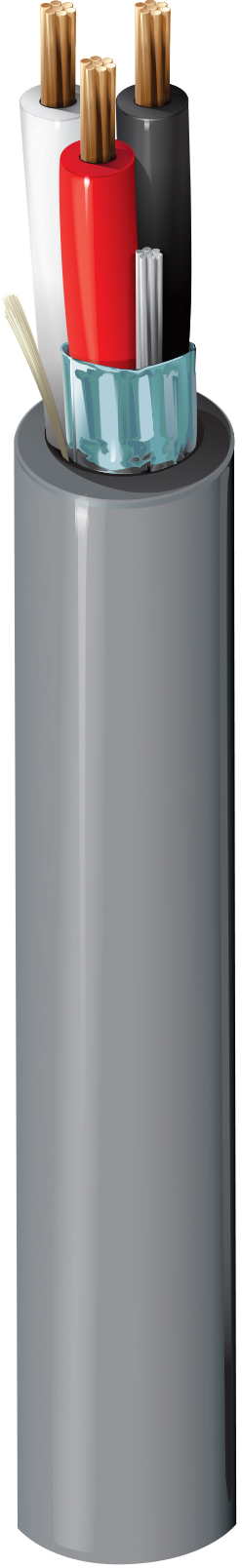

Security & Sound Cable, Riser-CMR, 1-22 AWG stranded bare copper pair with PVC insulation and Beldfoil® shield, 1-22 AWG stranded bare copper conductors with insulation, overall PVC jacket with ripcord

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

5501GE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
5501GE 008U1000	Gray	612825163213	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor Count	3

Conductor

AWG	Stranding	Material	No. of Conductors	No. of Pairs
22	7x30	BC - Bare Copper	1
				1

Insulation

Material	PVC - Polyvinyl Chloride
Nominal Wall Thickness	0.01 in

Color Chart

Color
Black & Red (shielded pair)
White

Inner Shield

Type	Tape
Material	Bi-Laminate (Alum+Poly)
Material Trade Name	Beldfoil®
Coverage [%]	100%
Drainwire Material	TC - Tinned Copper
Drainwire AWG	24

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.171 in
Nominal Wall Thickness	0.015 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	16.4 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor	46 pF/ft
Nom. Capacitance Conductor to Other Conductor to Shield	82.8 pF/ft

Inductance

Nominal Inductance	0.18 μH/ft

Current

Max. Recommended Current [A]	2.8 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V RMS

Temperature Range

Operating Temperature Range	-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight	15.1 lbs/1000ft
Maximum Recommended Pulling Tension	32.8 lbs
Minimum Minor Axis Bend Radius	1.8 in

Standards

NEC/(UL) Compliance	CMR
CEC/C(UL) Compliance	CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/96/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
MII Order #39 (China RoHS)	Yes
