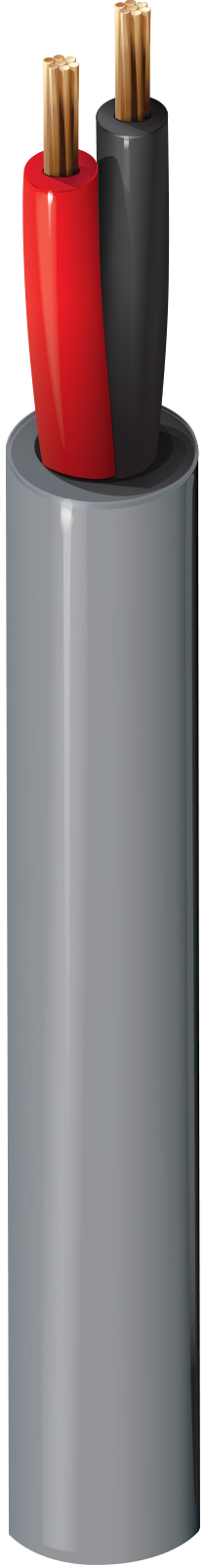

Security & Sound, #22-2c, BC, CM
Security & Sound Cable, Rated-CM, 2-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 23
Part numbers
5500UG is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 5500UG U4FU500 | Beige U4F | UnReel | 500 ft | 612825162933 | Order online |
| 5500UG U4FC1000 | Beige U4F | Coil | 1,000 ft | 612825162926 | Order online |
| 5500UG 006C500 | Blue, Light | Coil | 500 ft | 612825365839 | Order online |
| 5500UG 006U500 | Blue, Light | UnReel | 500 ft | 612825163046 | Order online |
| 5500UG 001C500 | Brown | Coil | 500 ft | 612825162957 | Order online |
| 5500UG 001C1000 | Brown | Coil | 1,000 ft | 612825162940 | Order online |
| 5500UG 008C500 | Gray | Coil | 500 ft | 612825163091 | Order online |
| 5500UG 008C1000 | Gray | Coil | 1,000 ft | 612825163084 | Order online |
| 5500UG 008U1000 | Gray | UnReel | 1,000 ft | 612825337188 | Order online |
| 5500UG 005C500 | Green, Dark | Coil | 500 ft | 612825163022 | Order online |
| 5500UG 005U500 | Green, Dark | UnReel | 500 ft | 612825163039 | Order online |
| 5500UG 005C1000 | Green, Dark | Coil | 1,000 ft | 612825163015 | Order online |
| 5500UG 003C500 | Orange | Coil | 500 ft | 612825162964 | Order online |
| 5500UG 003U500 | Orange | UnReel | 500 ft | 612825162971 | Order online |
| 5500UG 007C500 | Violet | Coil | 500 ft | 612825163060 | Order online |
| 5500UG 007U500 | Violet | UnReel | 500 ft | 612825163077 | Order online |
| 5500UG 007C1000 | Violet | Coil | 1,000 ft | 612825163053 | Order online |
| 5500UG 009C500 | White | Coil | 500 ft | 612825163114 | Order online |
| 5500UG 009C1000 | White | Coil | 1,000 ft | 612825163107 | Order online |
| 5500UG 009U1000 | White | UnReel | 1,000 ft | 612825163121 | Order online |
| 5500UG 004C500 | Yellow | Coil | 500 ft | 612825162995 | Order online |
| 5500UG 004U500 | Yellow | UnReel | 500 ft | 612825163008 | Order online |
| 5500UG 004C1000 | Yellow | Coil | 1,000 ft | 612825162988 | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Alarm, Intercom/PA, Single Line Telephone |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.114 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | BC - Bare Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.007 in (0.18 mm) |
| Nom. Insulation Diameter | 0.042 in (1.1 mm) |
| Color Code | Black and Red |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.114 in |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 16.4 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 20 pF/ft (66 pF/m) |
| Max. Current | 2.8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 18.2 lbs (8.26 kg) |
|---|---|
| Bulk Cable Weight | 7 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1.14 in (29.0 mm) |
|---|---|
| Installation Min. | 1.14 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.302 Revision Date: 02-03-2025 |
|---|
