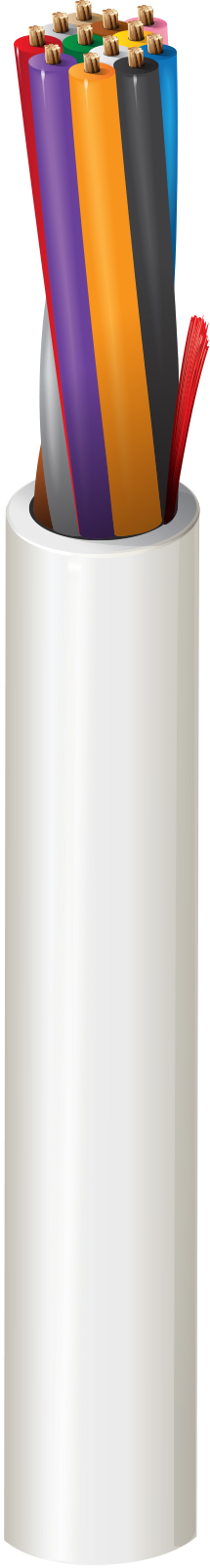

Security & Sound, #20-12c, BC, CMR
Security & Sound Cable, Riser-CMR, 12-20 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5409UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 5409UE 0081000 | Gray | 612825162315 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 12 |
| Size | 20 |
| Stranding | 7x28 |
| Material | BC - Bare Copper |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Thickness | 0.008 in (0.20 mm) |
| Nom. Insulation Diameter | 0.062 in (1.6 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.017 in (0.43 mm) |
| Nom. Diameter | 0.252 in (6.40 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 10.82 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 24.7 pF/ft (81.0 pF/m) |
| Max. Current | 2.6 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 151.2 lbs (68.58 kg) |
|---|---|
| Bulk Cable Weight | 53 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 2.52 in (64.0 mm) |
|---|---|
| Installation Min. | 2.52 in (64.0 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser, FT4 |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6409UE |
History
| Update and Revision | Revision Number: 0.407 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
