Product Number: 5407FE

Security & Sound, #20-9c, BC, Shielded, CMR

Name: Belden 5407FE
Brand: Belden
SKU: 5407FE

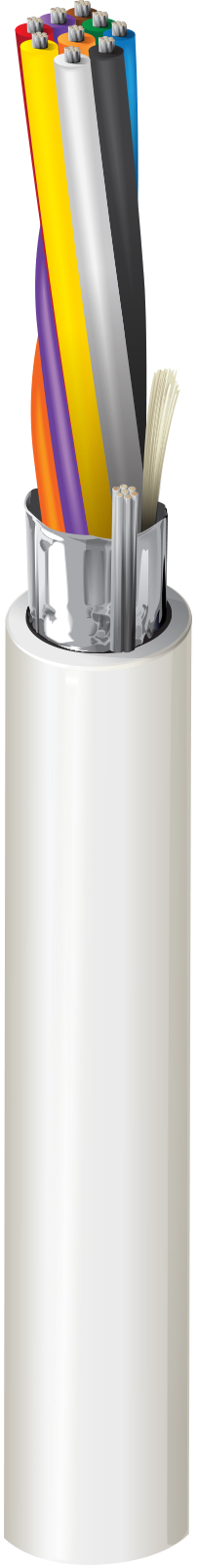

Security & Sound Cable, Riser-CMR, 9-20 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Ships from and sold by A5 IT.

Part numbers

5407FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
5407FE 0081000	Gray	612825162285	C	Order online

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Overall Cable Diameter (Nominal)	0.22 in

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.008 in (0.20 mm)
Nom. Insulation Diameter	0.052 in (1.3 mm)
Color Code	Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple

Nom Outer Shield DCR	14.4 Ohm/1000ft (47.2 Ohm/km)

Element	Conductor(s)
Nom. Conductor DCR	10.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	26 pF/ft (85 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	46.75 pF/ft (153.4 pF/m)
Max. Current	2.6 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	122.5 lbs (55.57 kg)
Bulk Cable Weight	43 lbs/1000ft

UL Temperature	75°C
Operating	-20°C To +75°C

Stationary Min.	2.2 in (56 mm)
Installation Min.	2.2 in

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL1666 Riser, FT4
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6407FE
