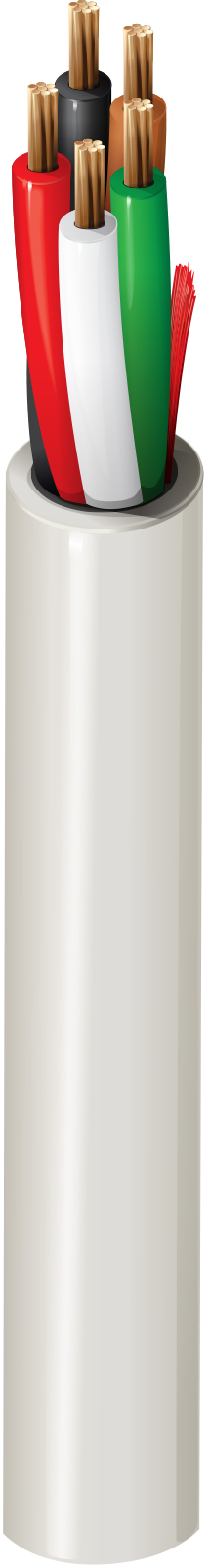

5403UE

Product Number: 5403UE

Security & Sound, #20-5c, BC, CMR

Security & Sound Cable, Riser-CMR, 5-20 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

5403UE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorUPCOrder
5403UE 0081000Gray612825162230Order online

Specifications

Product Overview

Suitable ApplicationsSecurity System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Overall Cable Diameter (Nominal)0.174 in

Conductor

ElementConductor(s)
No. of Elements5
Size20 AWG
Stranding7x28
MaterialBC - Bare Copper

Insulation

ElementConductor(s)
MaterialPP - Polypropylene
Nom. Thickness0.008 in (0.20 mm)
Nom. Insulation Diameter0.052 in (1.3 mm)
Color CodeBlack, Red, White, Green, Brown

Outer Shield

MaterialNo Shield

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.017 in (0.43 mm)
Nom. Diameter0.174 in
RipcordYes

Electrical Characteristics

Electricals

ElementConductor(s)
Nom. Conductor DCR10.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond20 pF/ft (66 pF/m)
Max. Current3 Amps per Conductor at 25oC

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Max. Pull Tension63 lbs (29 kg)
Bulk Cable Weight24 lbs/1000ft

Temperature

UL Temperature75°C
Operating-20°C To +75°C

Bend Radius

Stationary Min.1.74 in (44.2 mm)
Installation Min.1.74 in

Standards and Compliance

Environmental SuitabilityIndoor
Flammability / Reaction to FireUL1666 Riser, FT4
NEC / UL ComplianceArticle 800, CMR
CEC / C(UL) ComplianceCMG.
European Directive ComplianceEU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Plenum Number6403UE

History

Update and RevisionRevision Number: 0.302 Revision Date: 09-07-2025
