Product Number: 5403FE

Security & Sound, #20-5c, BC, Shielded, CMR

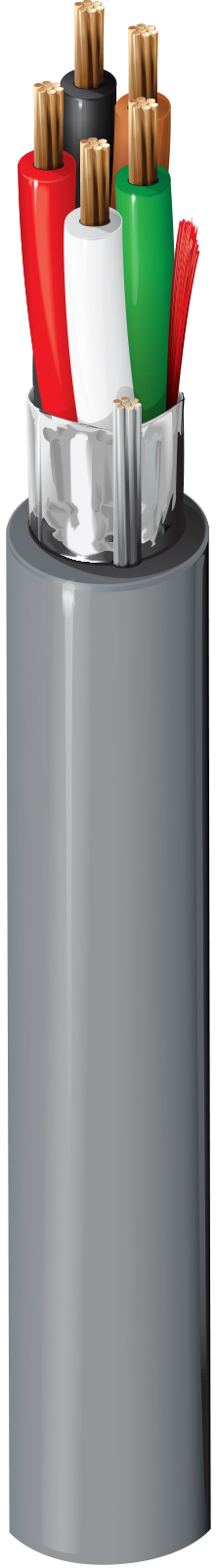

Security & Sound Cable, Riser-CMR, 5-20 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

5403FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
5403FE 0081000	Gray	612825337065	C	Order online
5403FE 008U1000	Gray	612825162223	—	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Overall Cable Diameter (Nominal)	0.177 in (4.50 mm)

Conductor

Element	Conductor(s)
No. of Elements	5
Size	20 AWG
Stranding	7x28
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.008 in (0.20 mm)
Color Code	Black, Red, White, Green, Brown

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.017 in (0.43 mm)
Nom. Diameter	0.177 in (4.50 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	10.9 Ohm/1000ft (35.8 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	10.2 Ohm/1000ft (33.5 Ohm/km)
Nom. Capacitance Cond-to-Cond	26 pF/ft (85 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	46.75 pF/ft (153.4 pF/m)
Max. Current	3 Amps per conductor @ 25°C

Voltage

UL Voltage Rating	300 V (CMR)

Mechanical Characteristics

Max. Pull Tension	72 lbs (33 kg)
Bulk Cable Weight	26 lbs/1000ft (39 kg/km)

Temperature

UL Temperature	75°C
Operating	-20°C to +75°C

Bend Radius

Stationary Min.	1.8 in (46 mm)
Installation Min.	1.8 in (46 mm)

Standards and Compliance

Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL1666 Riser
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6403FE
