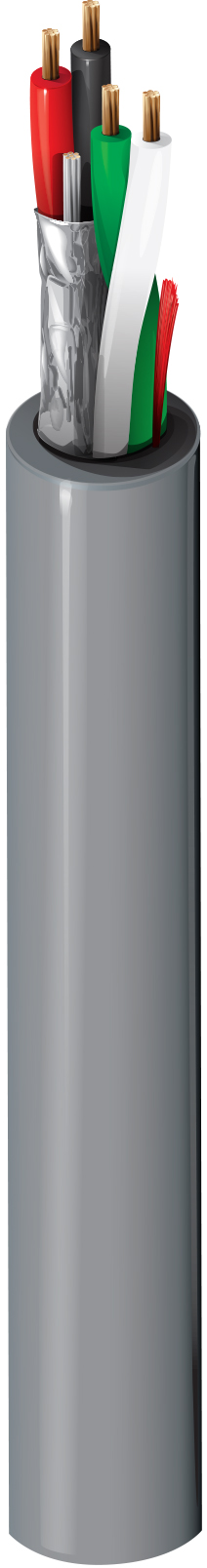

Product Number: 5402GE

Security & Sound, #20-2c, BC, Shielded, CMR

Security & Sound Cable, Riser-CMR, 1PR-20 AWG stranded bare copper pair with PVC insulation and Beldfoil® shield, 2C-20 AWG stranded bare copper conductors with insulation, overall PVC jacket with ripcord

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

5402GE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
5402GE 001U1000	Black	612825162155	Order online
5402GE 010U1000	Black	612825162179	Order online
5402GE 008U1000	Gray	612825162162	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Pair(s)	1	20	7x28	BC - Bare Copper
Conductor(s)	2	20	7x28	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Pair(s)	PVC - Polyvinyl Chloride	0.01 in (0.25 mm)	0.056 in (1.4 mm)	Black & Red
Conductor(s)	PVC - Polyvinyl Chloride	0.01 in (0.25 mm)	0.056 in (1.4 mm)	White, Green

Inner Shield

Element	Shield Type	Material	Coverage	Drainwire Type
Each Pair	Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (7x30) TC
Conductor(s)	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.2 in

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Inductance	Max. Current
Pair(s)	10.9 Ohm/1000ft	2.1 Ohm/1000ft (6.9 Ohm/km)	56 pF/ft (180 pF/m)	101 pF/ft (331 pF/m)	0.17 μH/ft (0.56 μH/m)	3 Amps per Conductor at 25oC
Conductor(s)	10.7 Ohm/1000ft (35.1 Ohm/km)

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	56 lbs (25 kg)
Bulk Cable Weight	25 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-20°C To +75°C

Bend Radius

Stationary Min.	2 in (51 mm)
Installation Min.	2 in

Standards and Compliance

Environmental Suitability	Outdoor
Flammability / Reaction to Fire	UL1666 Riser, FT4
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
