Product Number: 5402FE

Security & Sound, #20-4c, BC, Shielded, CMR

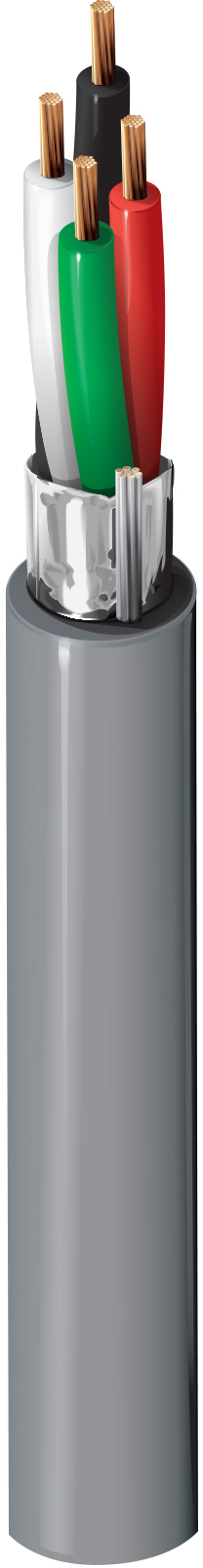

Security & Sound Cable, Riser-CMR, 4-20 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Availability: Global
Status: Active
Orderable items: 5

Ships from and sold by A5 IT.

Part numbers

5402FE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
5402FE 0081000	Gray	612825337058	C	Order online
5402FE 008500	Gray	612825162148	—	Order online
5402FE 008C500	Gray	—	—	Order online
5402FE 008U1000	Gray	612825162124	—	Order online
5402FE 008U500	Gray	612825162131	—	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Overall Cable Diameter (Nominal)	0.163 in (4.14 mm)

Conductor

Element	Conductor(s)
No. of Elements	4
Size	20 AWG
Stranding	7x28
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.008 in (0.20 mm)
Nom. Insulation Diameter	0.052 in (1.3 mm)
Color Code	Black, Red, White, Green

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.017 in (0.43 mm)
Nom. Diameter	0.163 in (4.14 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	11.3 Ohm/1000ft (37.1 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	10.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	24.75 pF/ft (81.20 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	44.5 pF/ft (146 pF/m)
Max. Current	6.4 Amps per conductor @ 25°C

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	56 lbs (25 kg)
Bulk Cable Weight	22 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-20°C to +75°C

Bend Radius

Stationary Min.	1.6 in (41 mm)
Installation Min.	1.6 in (41 mm)

Standards and Compliance

Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL 1666 Riser, IEEE 1202 FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark
UK Regulation Compliance	UKCA Mark
Plenum Number	6402FE
