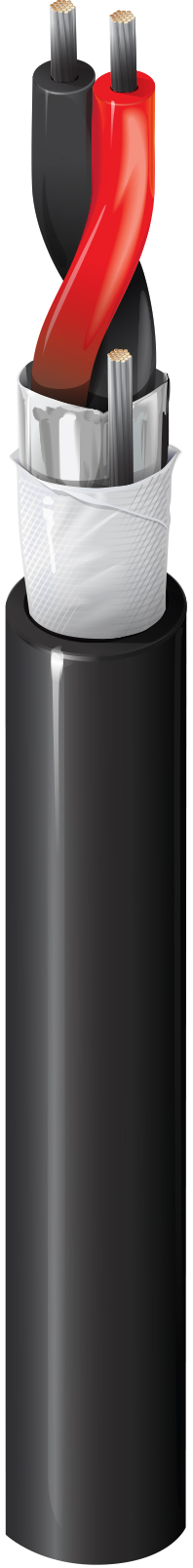

Product Number: 5400F1

Security & Sound, #20-2c, TC, Shielded, CM, Water-Blocked

Security & Sound Cable, Rated-CM, 2-20 AWG stranded tinned copper conductors with PVC insulation, waterblocking tape, Beldfoil® shield and PVC jacket with ripcord

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

5400F1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
5400F1 0081000	Gray	612825161974	C	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Construction Details

Waterblocking	Waterblock Tape
Overall Cable Diameter (Nominal)	0.197 in

Conductor

Element	Conductor(s)
No. of Elements	2
Size	20 AWG
Stranding	7x28
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.01 in (0.25 mm)
Nom. Insulation Diameter	0.058 in (1.5 mm)
Color Code	Black, Red

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	22 AWG (7x30) TC

Outer Jacket

Separator	Waterblocking Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.025 in (0.64 mm)
Nom. Diameter	0.197 in
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	10.3 Ohm/1000ft (33.8 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	10.3 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	56 pF/ft (180 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	101 pF/ft (331 pF/m)
Nom. Inductance	0.17 μH/ft (0.56 μH/m)
Max. Current	6.3 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	34 lbs (15 kg)
Bulk Cable Weight	19 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-40°C To +105°C

Bend Radius

Stationary Min.	1.97 in (50.0 mm)
Installation Min.	1.97 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Sustainability	Product LensTM, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire	UL1685 UL Loading
NEC / UL Compliance	Article 800, CM
CEC / C(UL) Compliance	CM.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
