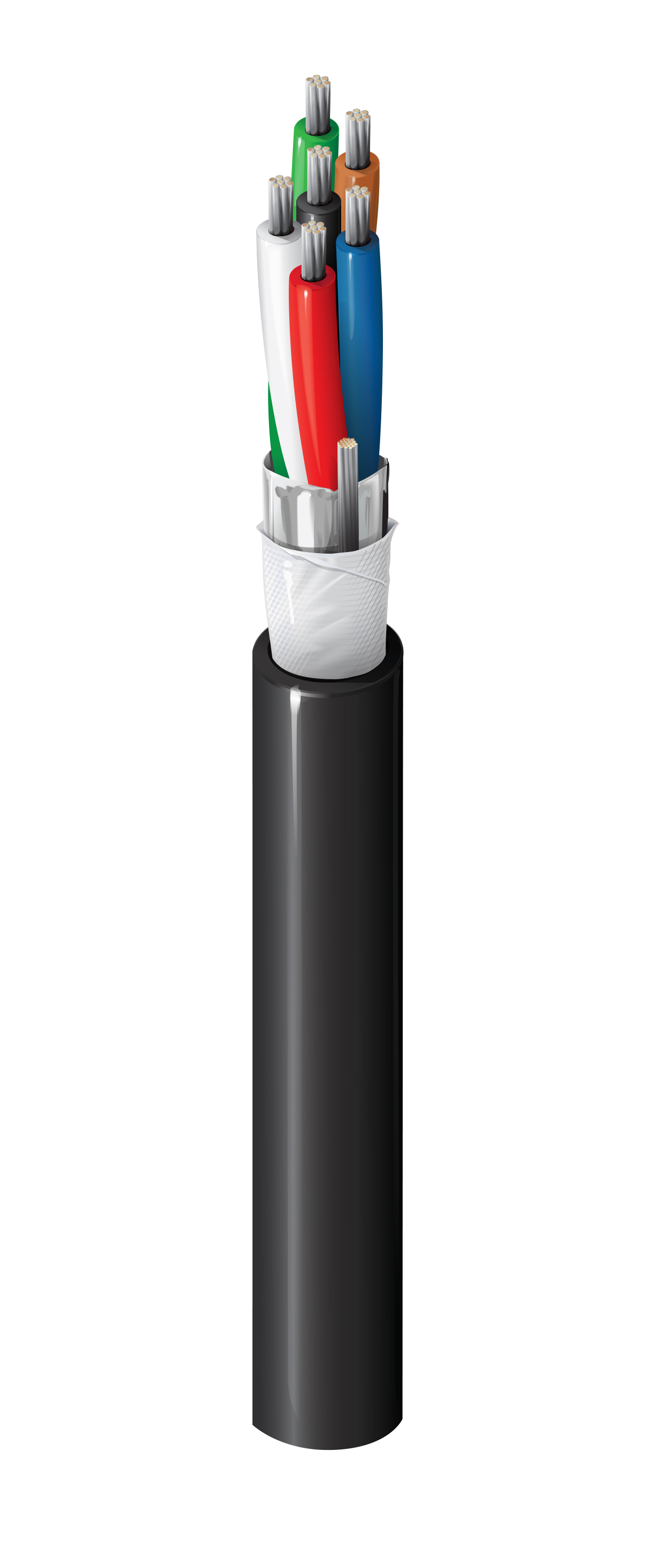

Product Number: 5304F1

Security & Sound, #18-6c, TC, Shielded, CMG-FPL-PLTC, Water-Blocked

Security & Sound Cable, Rated-CMG-FPL-PLTC, 6-18 AWG stranded tinned copper conductors with PVC insulation, Beldfoil® shield, Waterblocking tape, PVC jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

5304F1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
5304F1 0101000	Black	Reel	1,000 ft	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Construction Details

Conductor

Element	Conductor(s)
No. of Elements	6
Size	18
Stranding	7x26
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.04 in (1.0 mm)
Color Code	Black, Red, White, Green, Brown, Blue

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	20 AWG (7x28) TC

Outer Jacket

Separator	Waterblocking Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.042 in (1.1 mm)
Nom. Diameter	0.319 in (8.10 mm)

Electrical Characteristics

Nom Outer Shield DCR	7.2 Ohm/1000ft (24 Ohm/km)

Electricals

Nom. Conductor DCR	6.92 Ohm/1000ft (22.7 Ohm/km)
Nom. Capacitance Cond-to-Cond	30 pF/ft (98 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	54 pF/ft (180 pF/m)
Max. Current	3.5 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	148.4 lbs (67.31 kg)
Bulk Cable Weight	64 lbs/1000ft (95 kg/km)

Temperature

UL Temperature	105°C
Operating	-20°C To +105°C

Bend Radius

Stationary Min.	3.19 in (81.0 mm)
Installation Min.	3.19 in (81.0 mm)

Standards and Compliance

Environmental Suitability	Outdoor - Water Exposure, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
Flammability / Reaction to Fire	UL1685 FT4 loading, FT4, IEEE 1202 Vertical Tray Flame Test
NEC / UL Compliance	Article 725, Article 760, Article 800, CMG, FPL, PLTC
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2019-05-03
APAC Compliance	China RoHS II (GB/T 26572-2011)
