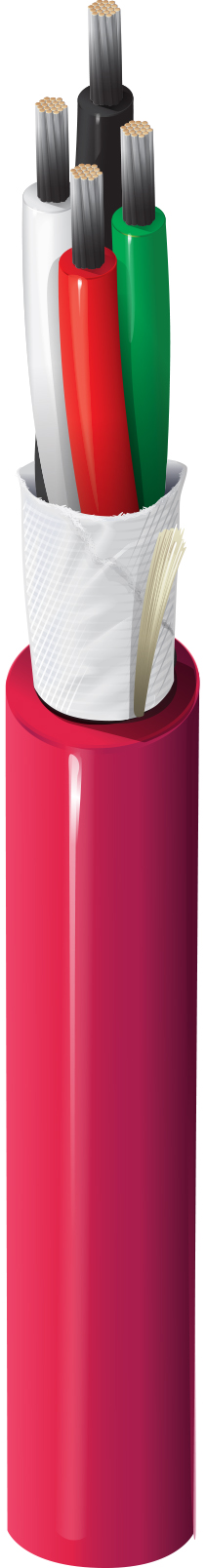

Security & Sound, #18-4c, TC, CMG-FPL-PLTC, Water-Blocked
Security & Sound Cable, Rated-CMG-FPL-PLTC, 4-18 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5302U1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 5302U1 0101000 | Black | 612825159797 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct |
|---|
Construction Details
| Waterblocking | Waterblock Tape |
|---|---|
| Overall Cable Diameter (Nominal) | 0.309 in (7.85 mm) |
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 18 AWG |
| Stranding | 7x26 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.017 in (0.43 mm) |
| Nom. Insulation Diameter | 0.080 in (2.0 mm) |
| Color Code | Black, White, Red, Green |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.042 in (1.1 mm) |
| Nom. Diameter | 0.309 in (7.85 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 5.9 Ohm/1000ft (19 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Max. Current | 7.2 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating | 300 V (CMG, FPL, PLTC-ER) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 89 lbs (40 kg) |
|---|---|
| Bulk Cable Weight | 40 lbs/1000ft (60 kg/km) |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -20°C to +105°C |
Bend Radius
| Stationary Min. | 3.1 in (79 mm) |
|---|---|
| Installation Min. | 3.1 in (79 mm) |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 760, Article 800 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.580 Revision Date: 08-25-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
