Product Number: 5302F1

Security & Sound, #18-4c, TC, Shielded, CMG-FPL-PLTC, Water-Blocked

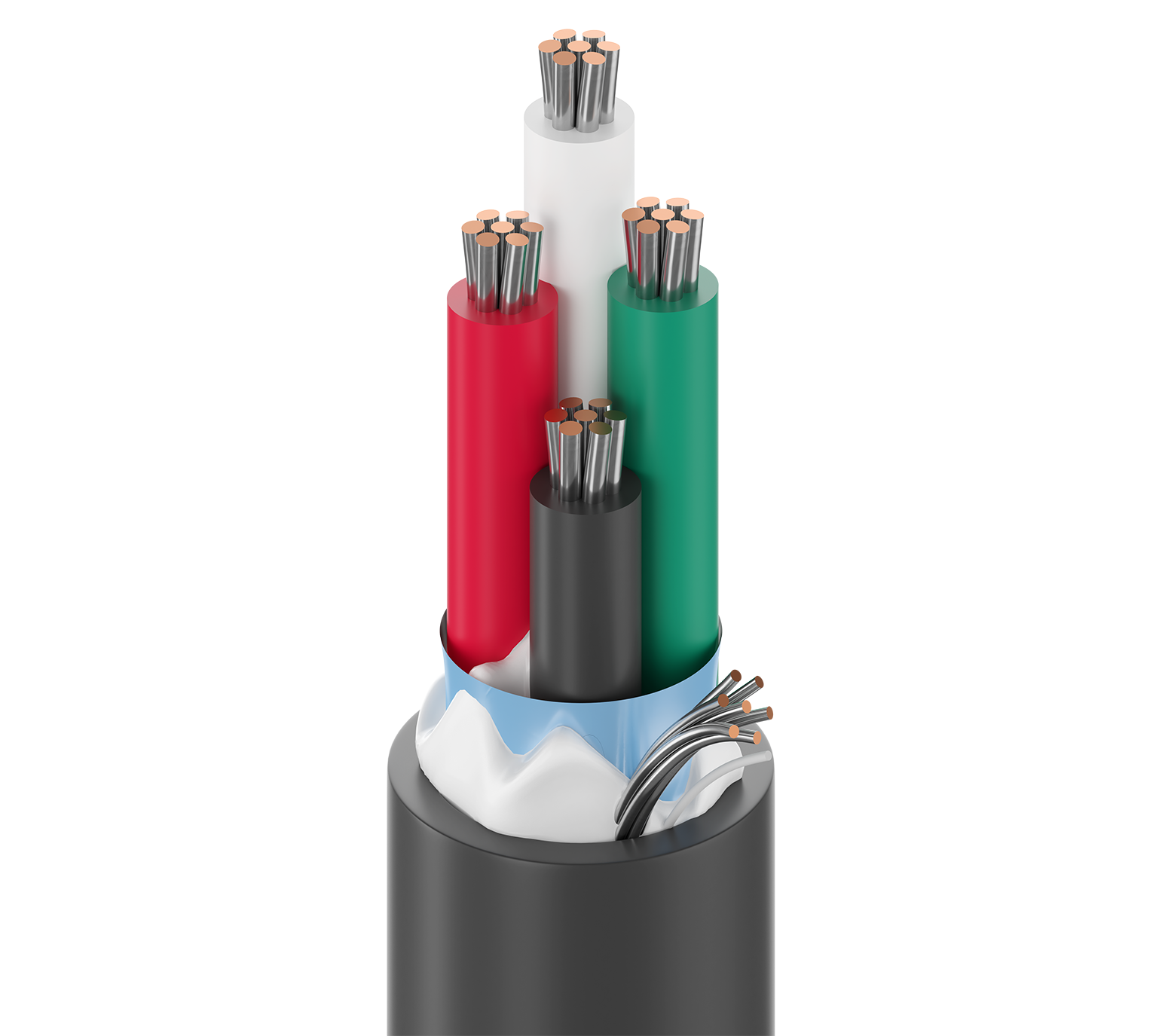

Security & Sound Cable, Rated-CMG-FPL-PLTC, 4-18 AWG stranded tinned copper conductors with PVC insulation, waterblocking tape, Beldfoil® shield and PVC jacket

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

5302F1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
5302F1 0101000	Black	Reel	1,000 ft	612825159599	C	Order online
5302F1 0021000	Red	Reel	1,000 ft	612825159582	C	Order online

Specifications

Product Overview

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Construction Details

Waterblocking	Waterblock Tape
Overall Cable Diameter (Nominal)	0.259 in (6.58 mm)

Conductor

Element	Conductor(s)
No. of Elements	4
Size	18 AWG
Stranding	7x26
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.066 in (1.7 mm)
Color Code	Black, White, Red, Green

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	20 AWG (7x28) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.037 in (0.94 mm)
Nom. Diameter	0.259 in (6.58 mm)

Electrical Characteristics

Nom Outer Shield DCR	15.25 Ohm/1000ft (50.03 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	6.6 Ohm/1000ft (22 Ohm/km)
Nom. Capacitance Cond-to-Cond	40 pF/ft (130 pF/m)

Voltage

UL Voltage Rating	300 V (CMG, FPL, PLTC-ER)

Mechanical Characteristics

Max. Pull Tension	102 lbs (46.3 kg)
Bulk Cable Weight	45 lbs/1000ft (67 kg/km)

Temperature

UL Temperature	105°C
Operating	-20°C to +105°C

Bend Radius

Stationary Min.	2.6 in (66 mm)
Installation Min.	2.6 in (66 mm)

Standards and Compliance

Environmental Suitability	Water Exposure/Below-Grade Conduit, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4, IEEE 1202
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 725, Article 760, Article 800, CMG, FPL, PLTC
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
