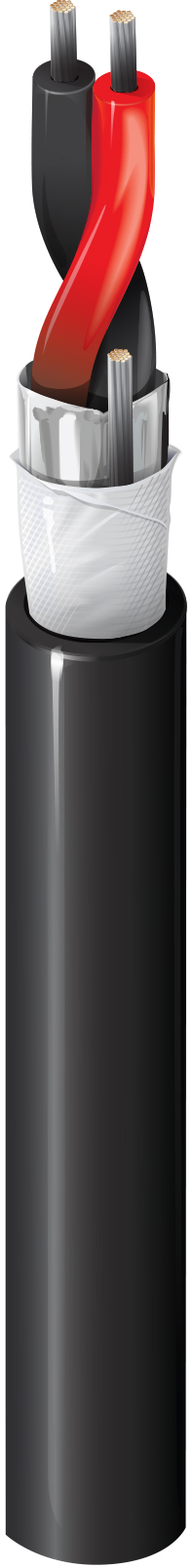

Security & Sound, #18-2c, TC, CL3, Water-Blocked
Security & Sound Cable, Rated-CL3, 2-18 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
5300U1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 5300U1 0101000 | Black | 612825159414 | Order online |
| 5300U1 0081000 | Gray | 612825336792 | Order online |
| 5300U1 008U1000 | Gray | 612825336785 | Order online |
Specifications
Product Overview
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct |
|---|
Construction Details
| Outer Shield Table Notes | Waterblocking tape |
|---|---|
| Waterblocking | Waterblock Tape |
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 18 |
| Stranding | 7x26 |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.010 in (0.25 mm) |
| Nom. Insulation Diameter | 0.066 in (1.7 mm) |
| Color Code | Black, Red |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.025 in (0.64 mm) |
| Nom. Diameter | 0.206 in (5.23 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 7.06 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 64.9 pF/ft (213 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 116.82 pF/ft (383.27 pF/m) |
| Nom. Inductance | 0.16 μH/ft (0.52 μH/m) |
| Max. Current | 5 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 45 lbs (20 kg) |
|---|---|
| Bulk Cable Weight | 21 lbs/1000ft |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -20°C To +105°C |
Bend Radius
| Stationary Min. | 2.15 in (54.6 mm) |
|---|---|
| Installation Min. | 2.15 in (54.6 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor |
|---|---|
| Sustainability | Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL1685 UL Loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.527 Revision Date: 09-07-2025 |
|---|
