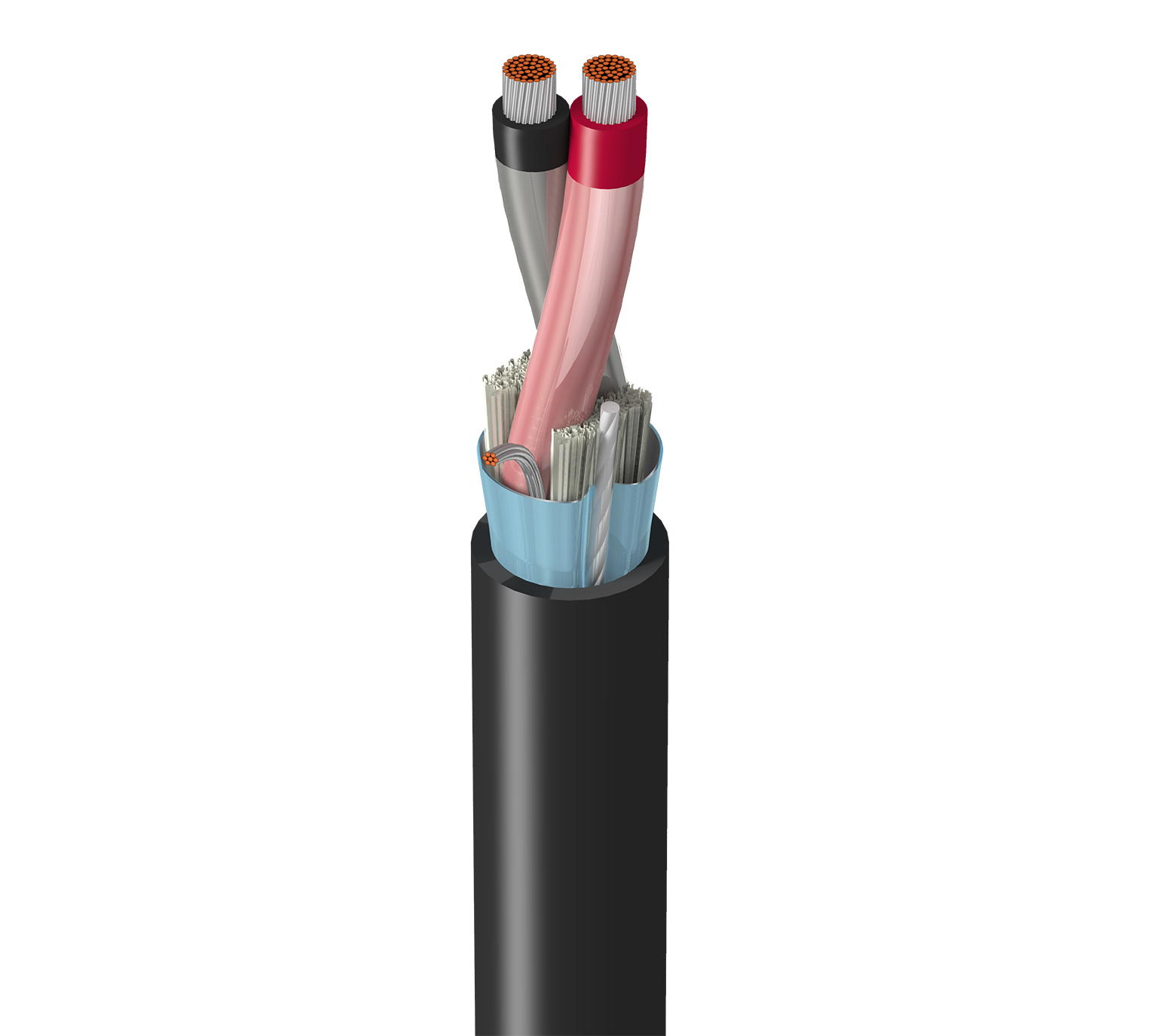

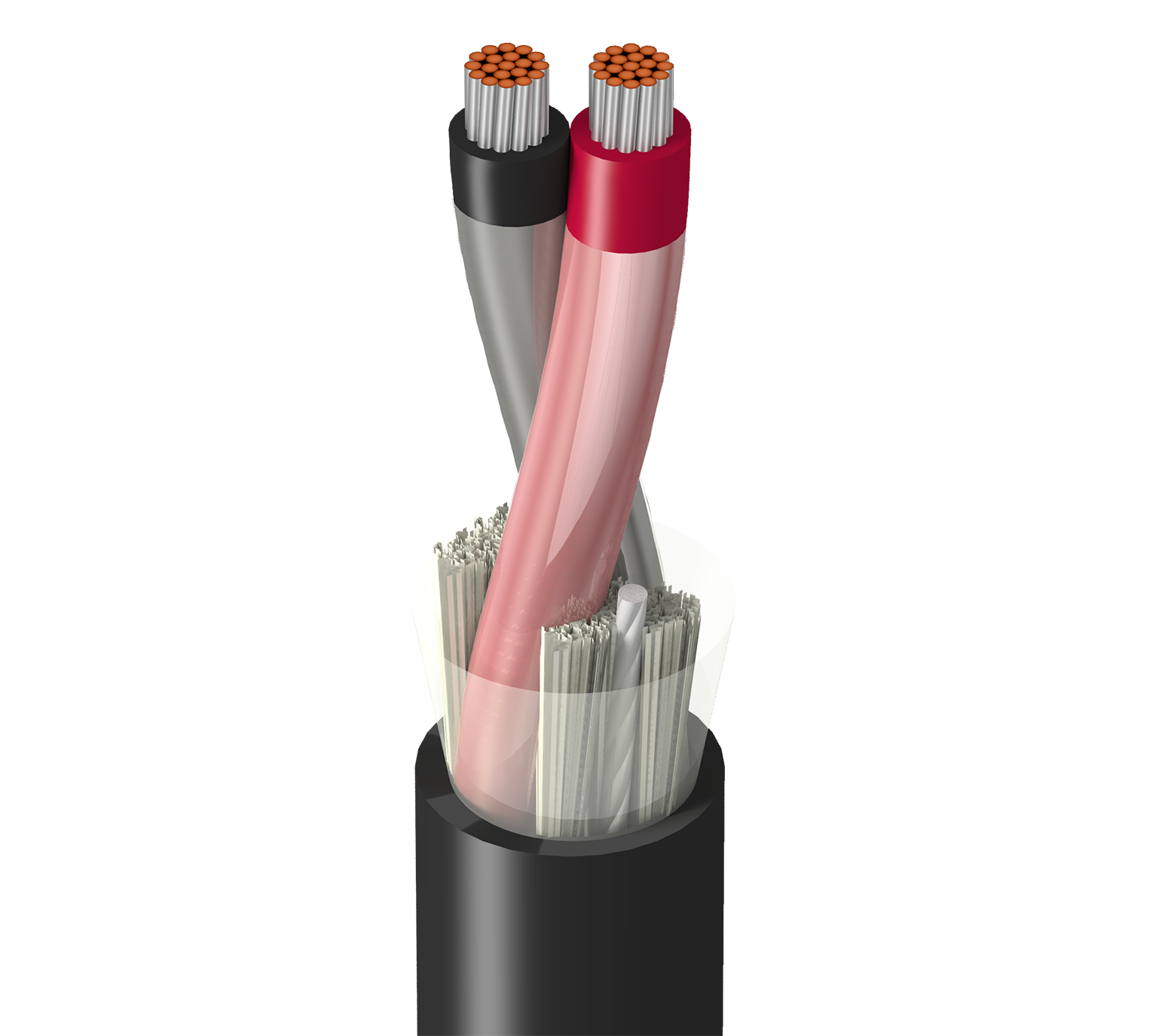

Product Number: 9343

High Perform Instr, 1 Pr #14 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC

High Performance Instrumentation, 1 Pair 14AWG (42x30) Tinned Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

9343 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
9343 0101000	Black	612825232124	C	Order online
9343 010500	Black	612825232131	C	Order online

Specifications

Product Overview

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Overall Cable Diameter (Nominal)	0.358 in (9.09 mm)

Conductor

Element	Pair(s)
No. of Elements	1
Size	14 AWG
Stranding	41x30
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.023 in (0.58 mm)
Nom. Insulation Diameter	0.119 in (3.02 mm)
Color Code	ICEA Chart E2

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	14 AWG (19x26) TC

Outer Jacket

Separator	Cotton Serve
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.358 in (9.09 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	2.2 Ohm/1000ft (7.2 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	2.6 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	50 pF/ft (160 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	102 pF/ft (335 pF/m)
Nom. Inductance	0.18 μH/ft (0.59 μH/m)
Max. Current	8 Amps per conductor at 25°C

Voltage

UL Voltage Rating	600 V (TC), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	154 lbs (69.9 kg)
Bulk Cable Weight	81 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-30°C to +90°C Dry, 75°C wet

Bend Radius

Stationary Min.	3.6 in (91 mm)
Installation Min.	3.6 in (91 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL Loading, IEEE 1202, FT4
NEC / UL Compliance	Article 336, Article 760, NPLF, TC
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
